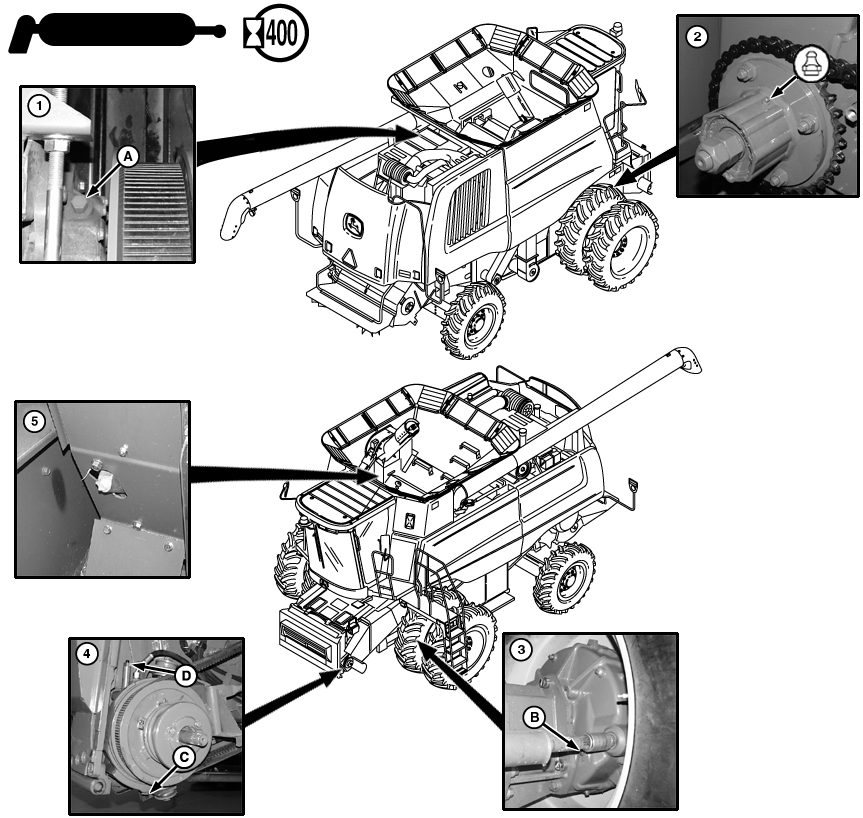

Every 400 Hours
|
|
|
|
|
|
1.
STS Two Speed Drive. Remove dipstick (A) and check oil level. Oil level should be in between grooves on dipstick. Add oil as needed.
2. Lube upper feeder house slip clutch, until grease is forced out past seal. |
3. Final Drives. Remove plug (B) and check level (both sides). Oil should be within 12 mm (1/2 in) of bottom of hole. Add oil as needed. |
OUO6075,0002B2B -19-17APR03-1/2 |
| 4. Feeder House Reverser Gear Case. Raise feeder house and lower safety stop. Drain at plug (C) and refill at dipstick hole (D). Check with feeder house raised. For gear cases with an oil cooler, run the gear case for several minutes. This will ensure that the cooler is filled with oil. Oil level must show on knurled part of dipstick. |
NOTE: Loading auger gear case does not need to be drained. 5. Loading Auger Gear Case. Check plug and add oil as needed. |
OUO6075,0002B2B -19-17APR03-2/2 |
