Chaffer/Sieve Elements With (Optional) TOUCHSET Automatic Combine Adjustment (ACA)-Removing

causym CAUTION: Shut off engine, set park brake and remove key to help prevent accidental starting and personal injury.

NOTE: It is not necessary to remove straw chopper (if equipped) to remove chaffer. Chopper must be in fully raised position.

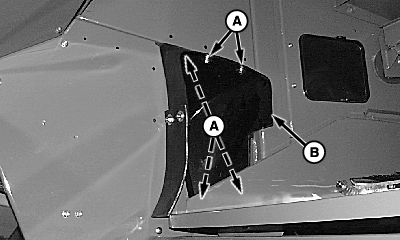

1. If equipped with a straw chopper, remove cap screws (A) and air chutes (B) from both sides.

H76071


A-Cap Screws
B-Air Chute

OUO6075,0002B51 -19-21APR03-1/6

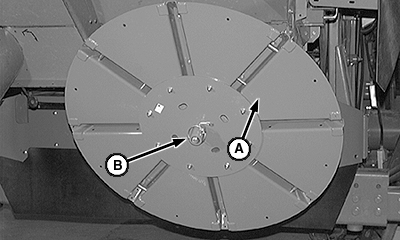

2. Raise spreader (if equipped) and remove pins (B).

3. Remove spreader disks (A).


A-Disk
B-Quick-Lock Pin

H54063

OUO6075,0002B51 -19-21APR03-2/6

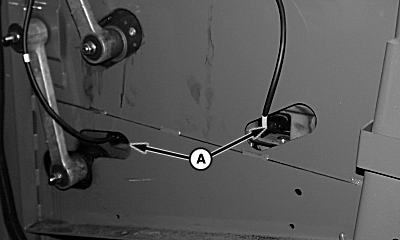

4. Disconnect electrical harness (A).


A-Chaffer/Sieve Harness

H69954

OUO6075,0002B51 -19-21APR03-3/6

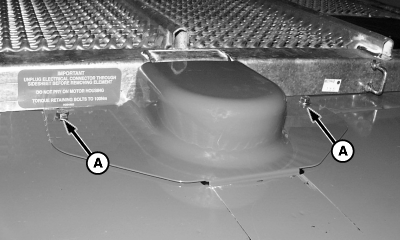

5. Remove cap screws (A) and cover to access chaffer motor.


A-Cap Screws

H75897

OUO6075,0002B51 -19-21APR03-4/6

NOTE: Chaffer motor does not have to be removed.

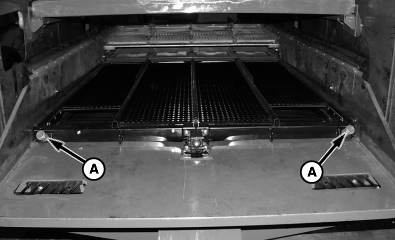

6. Remove cap screws (A) and chaffer.


A-Chaffer Bolts

H69859

OUO6075,0002B51 -19-21APR03-5/6

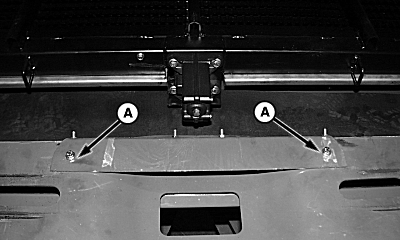

7. Remove cap screws (A) and shield.

8. Sieve removal is similar to chaffer procedure.

9. Install in reverse order.


A-Cap Screws

H69955

OUO6075,0002B51 -19-21APR03-6/6
