Chopper Stationary Knife Blade-Replacement

causym CAUTION: Shut off engine, set park brake and remove key. Before performing service or maintenance on raised chopper, use lift actuator to snap lock-out pins into place.

1. Loosen right-hand and left-hand cap screw (A) and lower knife assembly to position shown. Tighten right-hand and left-hand cap screw.

2. Loosen eight lock nuts (B).

causym CAUTION: Knife sections are sharp.

3. Remove pin (C) from retaining rod.

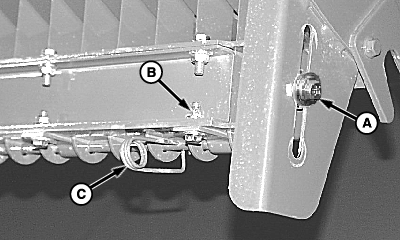

H75203


A-Cap Screw
B-Lock Nut (8 used)
C-Pin

OUO6075,0002B6B -19-23APR03-1/3

4. Push retaining rod (A) out. Turn knives over for additional usage, or replace knives if worn on both sides.

5. Push retaining rod back in.


A-Retaining Rod

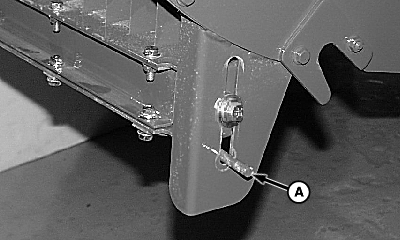

H75204

OUO6075,0002B6B -19-23APR03-2/3

6. Install pin (C) as shown.

7. Tighten eight lock nuts (B).

8. Loosen right-hand and left-hand cap screw (A) and position knife assembly in full up position. Tighten right-hand and left-hand cap screw.


A-Cap Screw
B-Lock Nut (8 used)
C-Pin

H75203

OUO6075,0002B6B -19-23APR03-3/3
