Unloading Auger Support Stud (9660 STS and 9760 STS)

NOTE: Periodically check to be sure that the auger fully slides into the stud when the auger is fully retracted. Readjust as needed.

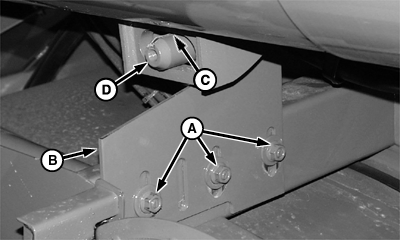

Loosen nuts (A) to adjust position of stud plate (B). Clearance (C) between top of stud (D) and slot, should be 0-3 mm (0-1/8 in.), when auger is empty. Tighten nuts.

A-Hardware
B-Plate
C-Clearance
D-Stud

OUO6075,0002B7A -19-23APR03-1/1
