CLIMATRAK Evaporator Filter-Removing

Clean this filter only if other service does not provide enough cooling. The evaporator filter can be inspected from outside the cab after removing the fresh air filter. If it looks clean, do not remove and clean it.

Remove five screws in seat console.

Remove six screws and evaporator cover.

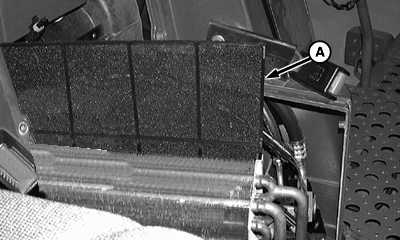

Remove evaporator filter (A).

Clean as you would the other filters.

A-Evaporator Filter

OUO6075,0002BA5 -19-24APR03-1/1
