Feeder House Variable Speed-Belt Replacement

CAUTION: Lower variable sheave is under spring tension; if belt is removed, it will snap back to a closed position.

Shut off engine, set parking brake and remove key.

1. Run feeder house to close lower variable sheave.

2. Remove both shields on left-hand side.

3. Remove drive sheave cover (A).

4. Loosen idler nut (B) to relieve belt tension.

5. Remove belt (C) from sheaves.

6. Install new belt and adjust tension. (See Adjusting Variable Speed Feeder House Belt).

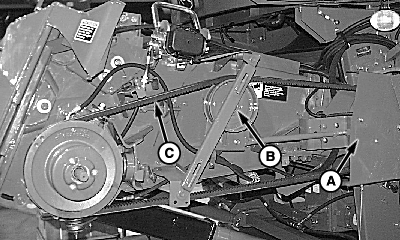

A-Shield
B-Nut
C-Belt

OUO6075,0002BAB -19-24APR03-1/1
