OMH208557: 9660 STS and 9760 STS Combines9660 STS 705501 9760 STS 705601 , Block File: OUO6075_0002BD7_19

Transporting Combine on a Trailer

causym CAUTION: Avoid collisions with other roadway users. Before transporting on a public roadway check and follow local regulations regarding the use of lights, flags, over-width signs, pilot vehicles and other requirements for wide loads.

1. Empty grain tank, swing unloading auger back, remove header and remove outside dual wheels (if equipped).

OUO6075,0002BD7 -19-29APR03-1/13

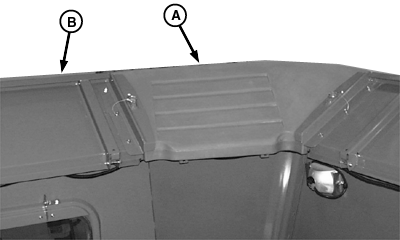

2. Standard Grain Tank Only; To reduce overall height of combine, remove quick-lock pins and corner extensions (A); fold down grain tank extensions (B) (if equipped).

A-Corner Extensions
B-Grain Tank Extensions

OUO6075,0002BD7 -19-29APR03-2/13

9760 STS High Unload Rate Grain Tank Only;

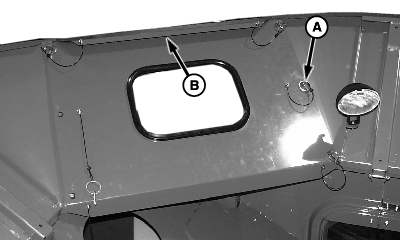

a. To reduce overall height of combine, remove quick-lock pins (A) and grain tank corner extensions (B) (if equipped).

A-Quick-Lock Pins
B-Grain Tank Corner Extensions

Front Grain Tank Extension Shown

OUO6075,0002BD7 -19-29APR03-3/13

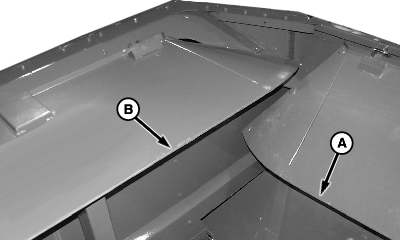

NOTE: It is important to fold the front and rear grain tank extensions in first, then fold the left-hand and right-hand grain tank extensions in last to reduce the height the machine.

b. Fold down front and rear grain tank extensions, then fold down left-hand and right hand grain tank extensions (if equipped).

A-Front and Rear Grain Tank Extensions
B-Left-Hand and Right-Hand Grain Tank Extensions

OUO6075,0002BD7 -19-29APR03-4/13

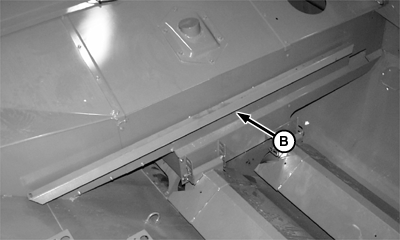

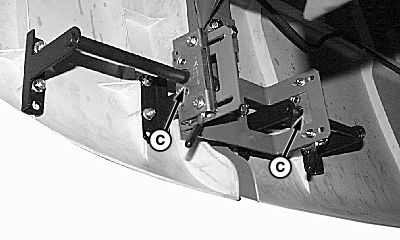

3. Remove quick-lock pin (A) and sample trough (B).

4. Place grain sample trough in storage position.

5. Release clamps (C) and lower auger.

A-Quick-Lock Pin
B-Grain Sample Trough
C-Clamps

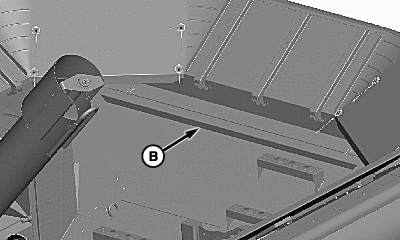

Storage Position

H75363

9760 STS High Unload Rate Sample Trough Storage Position

H62117

OUO6075,0002BD7 -19-29APR03-5/13

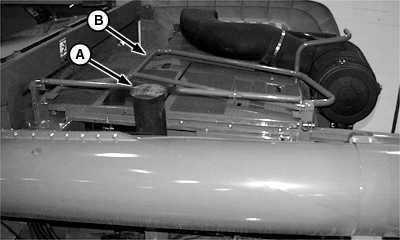

6. Tape exhaust pipe cap (A) closed to prevent damage to turbocharger.

7. Lower hand rail (B).

A-Exhaust Pipe Cap
B-Hand Rail

OUO6075,0002BD7 -19-29APR03-6/13

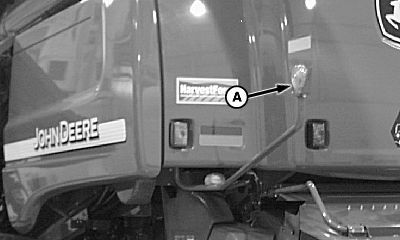

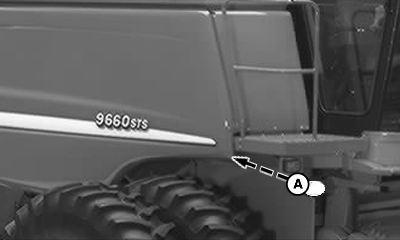

causym CAUTION: Possible injury or death to you or other can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location (A) when installing unloading auger retaining cap screw (B). Do not attempt to access location from engine platform.

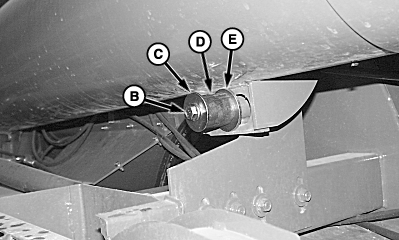

8. Standard Grain Tank Only; Retrieve cap screw (B), washer (C), spacer (D), washer (E) from combine tool box and install hardware as shown to retain unloading auger.

A-Location
B-Cap Screw
C-Washer
D-Spacer
E-Washer

OUO6075,0002BD7 -19-29APR03-7/13

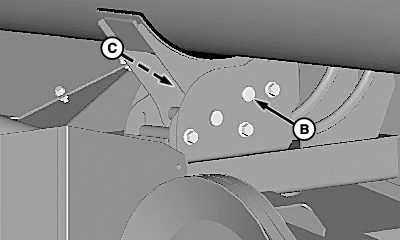

causym CAUTION: Possible injury or death to you or other can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location (A) when installing unloading auger retaining pin (B). Do not attempt to access location from engine platform.

9760 STS High Unload Rate Grain Tank Only;

a. Retrieve pin (B) and spring pin (C) from combine tool box.

b. Install hardware as shown to retain unloading auger.

A-Location
B-Pin
C-Spring Pin

OUO6075,0002BD7 -19-29APR03-8/13

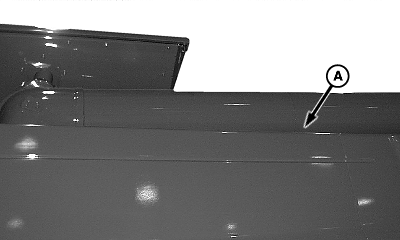

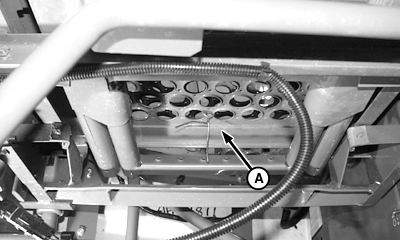

9. Wire down ladder extension and platform (A).

A-Ladder Extension and Platform

OUO6075,0002BD7 -19-29APR03-9/13

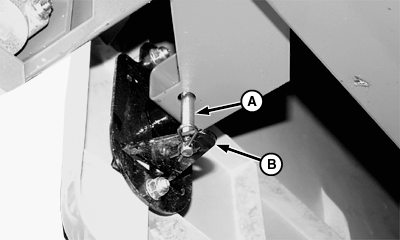

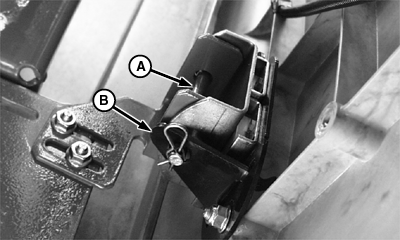

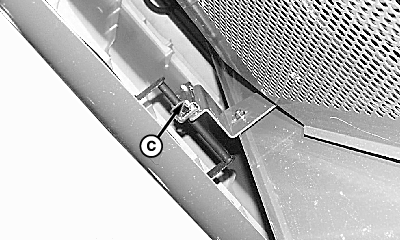

10. Make sure that pin (A) is installed through locking plate (B) and retained with spring pin at front corner of right-hand gull wing door and door latch (C) is fully engaged.

11. Wire down door at latch (C).

A-Pin
B-Locking Plate
C-Door Latch

OUO6075,0002BD7 -19-29APR03-10/13

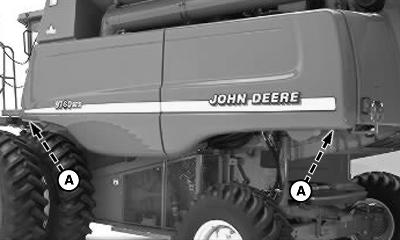

12. Make sure pins (A) are installed through locking plates (B) and retained with spring pins at front and rear corners of left-hand gull wing doors and door latch (C) is fully engaged.

13. Wire down door at latches (C).

A-Pins
B-Locking Plate
C-Door Latches
