Unloading Auger Swing Cylinder Eyebolt-Adjusting (9660 STS and 9760 STS)

causym CAUTION: Shut off engine, set parking brake and remove key.

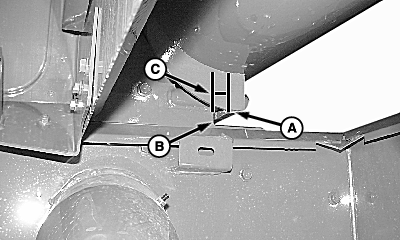

1. With hydraulic cylinder fully retracted, check gap between plate (A) and stop (B). Gap (C) should be set to specification.

Specification

Plate to Stop -Gap 12-16 mm (1/2-5/8 in)

H76251


A-Plate
B-Stop
C-Gap

OUO6075,0002BE2 -19-30APR03-1/2

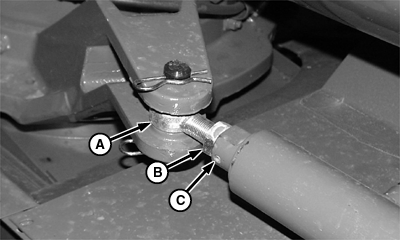

2. If gap is incorrect adjust cylinder rod end (A). Loosen jam nut (B) and set screw (C). Screw cylinder rod in or out to obtain correct gap.

3. Tighten jam nut and set screw.


A-Cylinder Rod End
B-Jam Nut
C-Set Screw

H66021

OUO6075,0002BE2 -19-30APR03-2/2
