Light Switches
NOTE:
The combine is equipped with exit lighting. Two headlamps will remain "ON" for 90 seconds after the lights are turned "OFF" and the key removed.
-

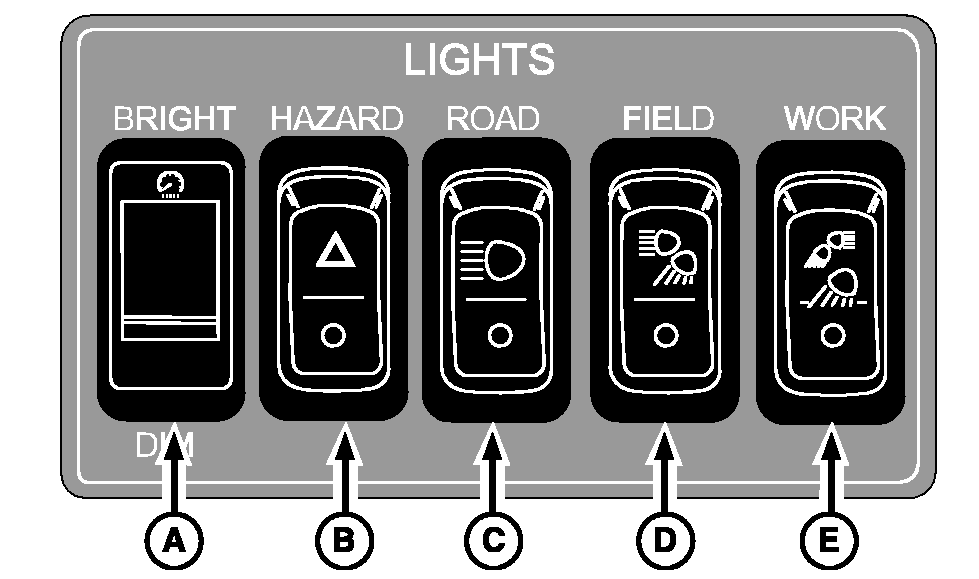

(A) Dimmer, for all cab interior lights.
-
(B) Hazard: Warning (flashing) lights, four road lights and tail lights (if engine is running) and turn signals.
-
(C) Road: Warning (flashing) lights and four road lights, tail lights and turn signals.
-
(D) Field: Grain tank and field lights (field position), and side finder lights "ON" with turn signal lever. Unloading auger light when auger is extended.
-
(E) Work:
-
Position 1: Stubble lights.
-
Position 2: Stubble lights and rear residue lights.
|
A-Dimmer for Cab Interior Lights
B-Hazard Lights
C-Road Lights
D-Field Lights
E-Work Lights
|
