VISIONTRAK Performance Monitor

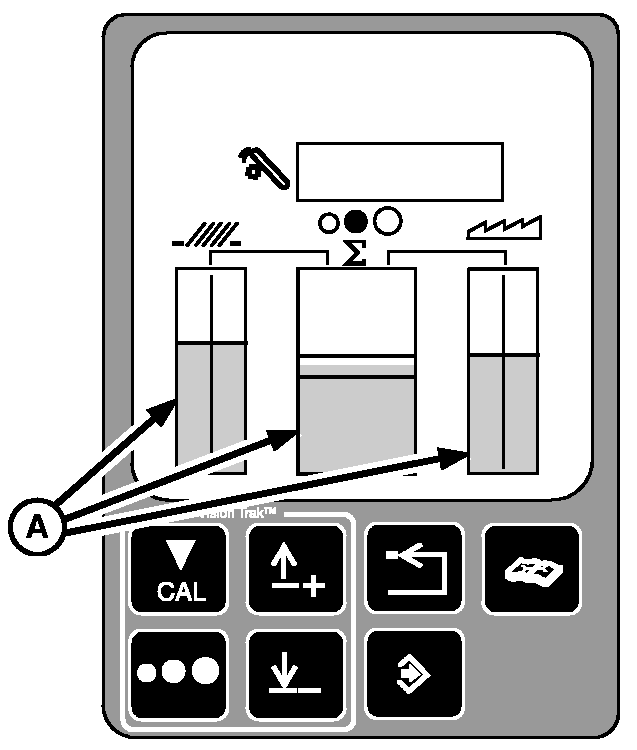

Grain loss information will be displayed by three vertical bar graphs (A).

A-Vertical Bar Graphs

OUO6075,0002CE3 -19-27MAY03-1/2

Shoe Loss

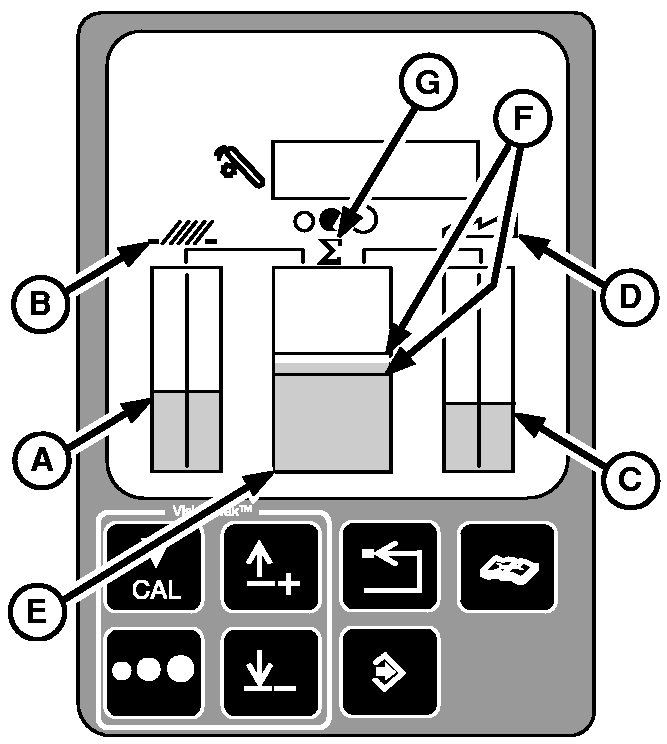

Averaged shoe loss will be shown by two adjacent vertical bar graphs (A) located to the left of the display area. Shoe icon (B) is displayed above the bar graphs.

Separator Loss

Averaged separator loss will be shown by two adjacent vertical bar graphs (C) located to the right of the display area. A separator icon (D) is displayed above the bar graphs.

Total Loss

Total loss will be shown on a vertical bar graph (E) located in the center of the lower portion of the display. Two horizontal lines near the center of the range will indicate the calibrated normal range (F). A summation symbol (G) is displayed above the bar graph.

A-Vertical Bar Graphs
B-Shoe Icon
C-Vertical Bar Graphs
D-Separator Icon
E-Vertical Bar Graph
F-Calibrated Normal Range
G-Summation Symbol

OUO6075,0002CE3 -19-27MAY03-2/2
