Fuel System

NOTE: Make sure precleaner bowl is fully seated to prevent air from entering the fuel system.

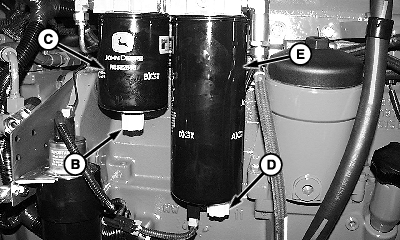

Remove precleaner and clean screen (A) if dirty fuel has been used.

Open drain (B) to inspect fuel system for water in secondary filter (C). (See Service Engine section).

Open drain (D) to inspect fuel system for water in primary filter (E). (See Service Engine section).

If problem persists change fuel filters. (See Service Engine section).

A-Screen
B-Drain
C-Secondary Fuel Filter
D-Water Trap
E-Primary Fuel Filter

OUO6075,0003125 -19-13OCT03-1/1
