Water Separator Primary Fuel Filter-Draining

CAUTION: Always remove ignition key and set park brake before performing maintenance work on fuel filter.

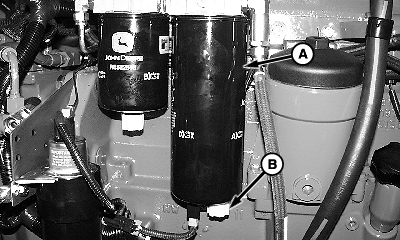

When primary fuel filter (A) senses water in the fuel system an error code will be generated on the cornerpost.

If error code appears, drain primary fuel filter using drain (B). Reset error code when water is drained from the fuel system.

A-Primary Fuel Filter
B-Drain

OUO6075,0003126 -19-13OCT03-1/1
