Cooling System-Draining

CAUTION: Avoid being scalded when radiator cap is removed. First turn cap slightly to the radiator stop. This lets steam safely out the vent. Never open radiator cap when engine is hot. Allow system to cool before draining radiator.

Every two years or 1500 hours, drain cooling system by opening drain on bottom side of radiator (A) and drain above engine crankshaft (B).

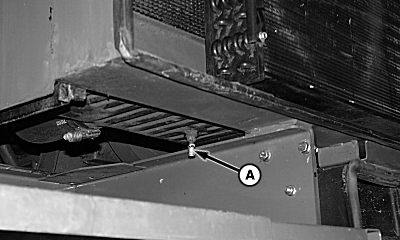

A-Radiator Drain (Bottom Side)

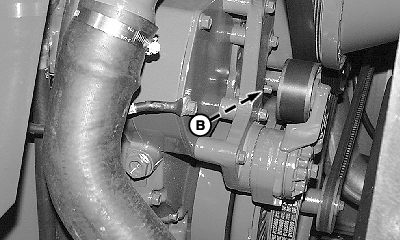

B-Engine Crankshaft Drain

OUO6075,0003152 -19-15OCT03-1/2

Remove hose (A) from bottom of recovery tank and drain tank.

Close radiator drain, install hose on recovery tank and fill system with clean water.

Install radiator cap and run engine until it reaches operating temperature with heater "ON".

Stop engine, carefully remove radiator cap and drain water out before rust or sediment settles.

Close radiator drain and refill system with a solution of clean water and John Deere Cooling System Cleaner PT500 or its equal. Follow instructions with cleaner.

After using cleaner, flush system with clean water and drain.

Close radiator drain, close and latch rotary screen door and fill system. (See Cooling System-Filling in this section for filling procedure and Fuels And Lubricants section for coolant specifications).

A-Hose

OUO6075,0003152 -19-15OCT03-2/2
