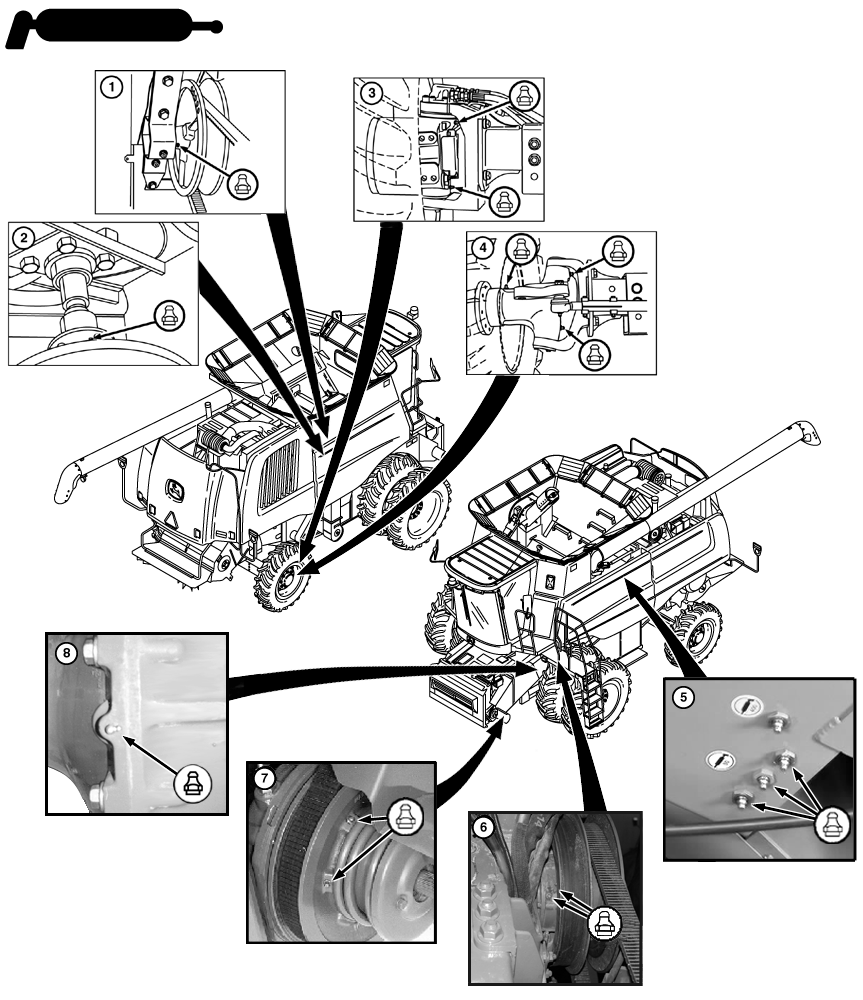

2. Cleaning Fan Variable Sheaves. Fitting on hub located on inner sheave. Rotate sheaves for fitting access.

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots at 10 hours. In normal conditions grease at 50 hours.

3. Motor Pivots Two Speed Four Wheel Drive (both sides).

Lube two fittings.

NOTE: Grease rear hubs until grease purges from inner seal.

4. Heavy Duty Rear Axle Spindles. Lube fittings (both sides).

IMPORTANT: Pump 10 to 15 shots of grease into each fitting.

5. Unloading Auger Swivel Joint. 9660 STS and 9760 STS lube bank of three lubrication lines. 9760 STS High Unload Rate lube bank of four lubrication lines.

6. Feeder House Upper Drive Sheaves. Raise feeder house, lower safety stop and lube fittings from underside of feeder house. It may be necessary to rotate sheave for access to fittings.

7. Feeder House Reverser Drive Gear Case. When operating in severe conditions or high yielding corn, grease each fitting (2 - 3 times) every 10 hours. When operating in normal conditions, grease each fitting (10 - 15 times) every 50 hours.

8. Final Drive Outer Bearing. Lube one fitting (both sides). When operating in mud or water lube at 10 hours.
