Right-Hand Armrest and Control Console-Adjusting (Rotating Cam System)

A single control moves the right-hand armrest and control console.

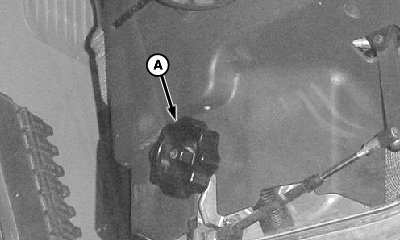

To adjust the armrest, push in on knob (A) and rotate either direction for desired working position.

A-Knob

OUO6075,0003204 -19-30OCT03-1/1
