Right-Hand Armrest and Control Console-Adjusting (Slide Adjust System)

A single control allows the operator to adjust the right-hand armrest control console.

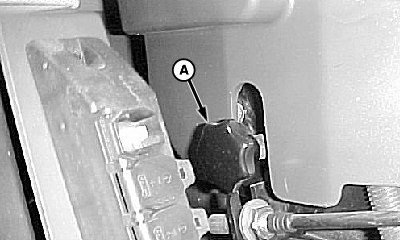

To adjust right-hand armrest control console, loosen knob and slide armrest up/forward or down/back in slots on outer plate and tighten knob to lock armrest in place.

A-Knob

OUO6075,0003205 -19-30OCT03-1/1
