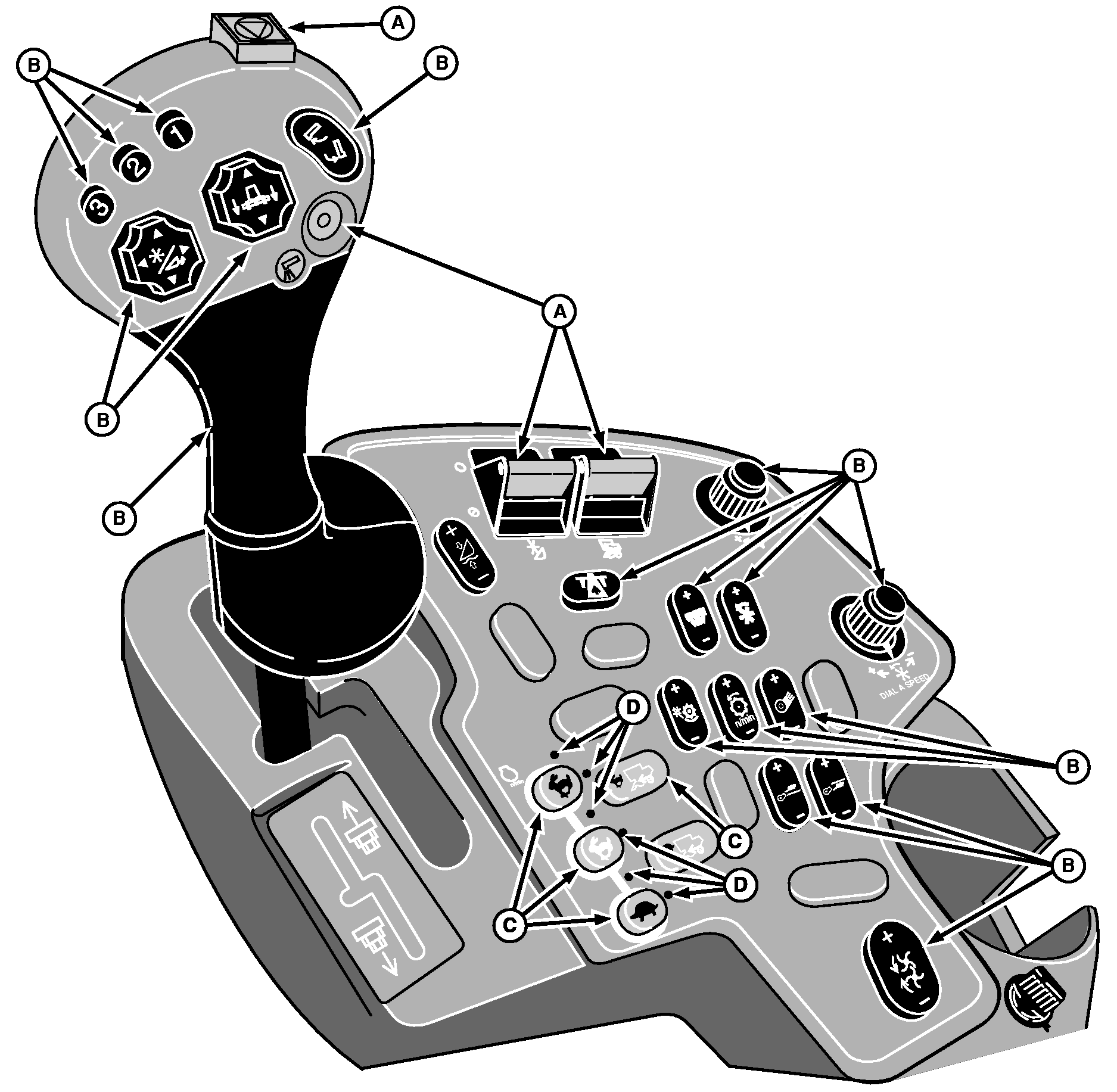

Before operating this combine for the first time, become familiar with the switches and controls. These controls are color "coded" to help you quickly locate them when operating the combine.

• Yellow (A) - drive engagement
• Black (B) - operating adjustments and controls
• Orange (C) - ground drive and engine speed
• Green (D) - activation indicator

OUO6075,0002543 -19-16JAN03-1/1
