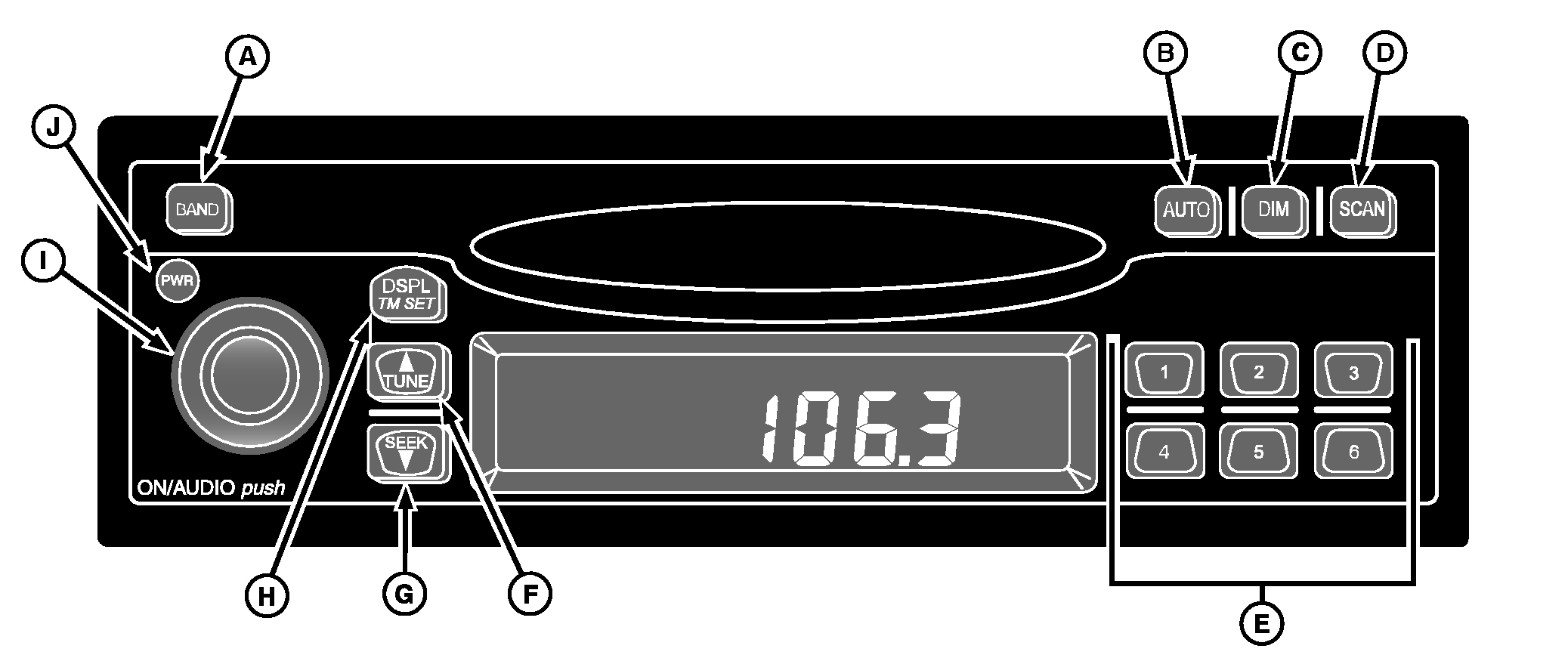

A-Band AM FM1, FM2 and Weatherband
B-Auto- Stores strongest stations to presets
C-Dim - Adjusts brightness of display

D-Scan - Scans all stations in current band
E-Push buttons - 1-6 preset stations
F-Tune - Changes radio station

G-Seek - Changes radio station
H-Displ/Tm Set - Changes display/switches to time set mode

I-On/Audio - Power/volume/receiver settings
J-Pwr - Power

1. Turn the ignition "ON".
2. Press and hold the DSPL/TM SET button (H) until the hours digits flash.
3. Press the TUNE (up arrow) (F) or SEEK button (down arrow) (G) to set the correct hour.
4. Press the DSPL/TM SET button again and the minutes digits will flash.
5. Press the TUNE (up arrow) or SEEK button (down arrow) to set the correct minute.

The seconds are reset to zero when the minutes setting is changed. After five seconds of inactivity the display will return to the default and the clock will be set.

Your receiver is equipped with two FM radio bands, FM1 and FM2. The two bands are the same, but allow you to set six presets in each band, for a total of 12 FM presets.

With the ignition on, the receiver may be turned on or off by pressing the PWR button (J). Pressing the ON/AUDIO knob (I) will also activate the receiver.

The receiver will display the time of day when the receiver is off.

Momentarily pressing the DISPL/TM SET button (H) when the receiver is on allows you to toggle between displays.

When the receiver is in AM, FM1, FM2 or WX, the display will toggle between the frequency and time of day.

1. Press and hold the DSPL/TM SET button for two seconds until the hours digits flash.

OUO6075,00025FE -19-23JAN03-1/2

2. Press push-button 6 to change the display default.

After five seconds of inactivity, the selected default will be displayed.

If the dash dimmer does not control the brightness of the receiver display, press and hold the DIM button (C) until "DIM" and the brightness level appear on the display. Rotate the AUDIO knob clockwise to increase the brightness of the receiver display and counterclockwise to decrease it.

To adjust the Volume, Bass, Treble, Fade, and Balance, press and release the ON/AUDIO knob repeatedly until the desired feature appears on the display.

Volume - Volume is the default function. Rotate the AUDIO knob clockwise to increase the volume and counterclockwise to decrease it. The display will show "VOL" and the volume level.

Bass - Press the AUDIO knob until "BASS" and the present level appear on the display. Rotate the knob clockwise to increase the bass sound and counterclockwise to decrease it.

Treble - Press the AUDIO knob until "TREB" and the present level appear. Rotate the knob clockwise to increase the treble sound and counterclockwise to decrease it.

Fade - Press the AUDIO knob until "FADE" and the present level appear on the display. Rotate the knob clockwise to move the sound to the front speakers and counterclockwise to move the sound to the rear.

Balance - Press the AUDIO knob until "BAL" and the present level appear. Rotate the knob clockwise to move the sound to the right speakers and counterclockwise to move the sound to the left. After five seconds of inactivity, the receiver will return to the default display.

OUO6075,00025FE -19-23JAN03-2/2
