Auxiliary Power Outlet Strip and SERVICE ADVISOR™ Diagnostic Connector

The auxiliary power outlet strip (A) with six additional electrical outlets is located at the lower rear of the right-hand side window, provides key-switched or unswitched power. The maximum combined current draw for all outlets is 30 amps.

A SERVICE ADVISOR diagnostic connector (B) is also provided.

Spade terminal (C) is direct positive power at all times.

Spade terminal (D) is ground.

Spade terminal (E) is auxiliary power (operates with key switch "ON").

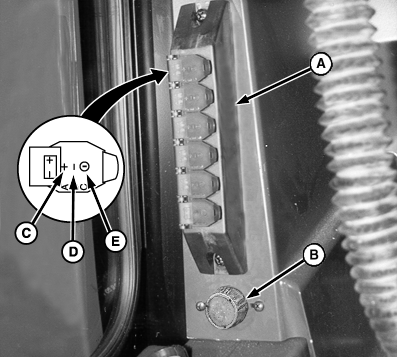

H70168


A-Auxiliary Power Outlet Strip
B-SERVICE ADVISOR Diagnostic Connector
C-Spade Terminal (Direct Positive Power)
D-Spade Terminal Ground
E-Spade Terminal (Positive, Key Switched On)

SERVICE ADVISOR is a trademark of Deere & Company

OUO6075,000260D -19-23JAN03-1/1
