Remove and Install High Intensity Discharge (HID) Xenon Lights (Optional)

CAUTION: Avoid serious injury or death from electric shock or lamp explosion. This lamp is powered by 25,000 volts. Do not begin installation of HID-Xenon lights unless the lights are turned off, the engine is turned off, the key is removed, and appropriate eye protection is worn.

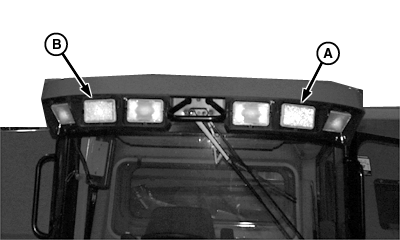

Locate light #2 (A) and/or light #5 (B) to be replaced.

A-Light # 2
B-Light # 5

OUO6075,000269C -19-04FEB03-1/6

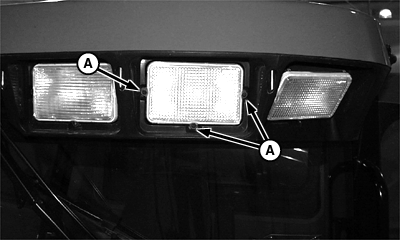

Remove adjusting screws (A).

A-Adjusting Screws (3 used)

OUO6075,000269C -19-04FEB03-2/6

IMPORTANT: To prevent equipment damage make sure machine lights are turned off before disconnecting wiring harness connector.

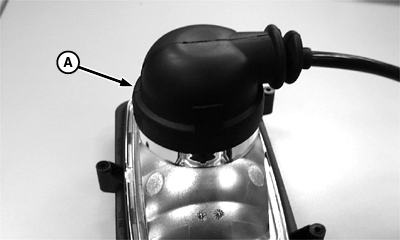

Remove rubber boot (A) from light.

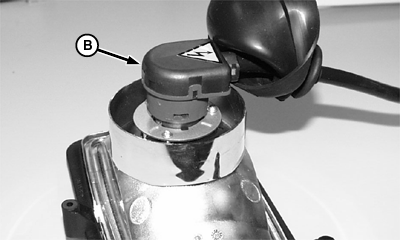

Disconnect ballast wiring harness connector (B) from light by turning counter-clockwise.

Remove and replace bulb.

A-Rubber Boot
B-Ballast Wiring Harness Connector

OUO6075,000269C -19-04FEB03-3/6

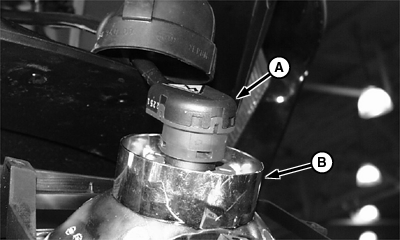

Attach ballast wiring harness connector (A) to light assembly (B).

A-Ballast Wiring Harness Connector
B-Light Assembly

OUO6075,000269C -19-04FEB03-4/6

Slide rubber boot (A) onto light assembly.

A-Rubber Boot

OUO6075,000269C -19-04FEB03-5/6

Install light assembly (A) onto cab roof and retain with adjusting screws (B).

NOTE: The initial adjustment of the light should begin with the top surface of the adjusting screws are flush with flat surface of the fascia.

Adjust light with adjusting screws as needed.

A-Light Assembly
B-Adjusting Screws
