Adjusting Predefined Settings

NOTE: Adjustments of threshing speed should take less than 50 seconds. If threshing speed is not reached in the allotted time an error code will appear.

Adjustments of concave clearance should take less than 30 seconds. If concave clearance is not reached in the allotted time an error code will appear.

Adjustments of fan speed should take less than 130 seconds. If fan speed is not reached in the allotted time an error code will appear.

Adjustments of the chaffer should take less than 45 seconds. If the chaffer clearance is not reached in the allotted time an error code will appear.

Adjustments of the sieve should take less than 45 seconds. If the sieve clearance is not reached in the allotted time an error code will appear.

1. Push up or down arrows (A) to scroll through the different crop settings .

2. To adjust to desired crop settings (D), the separator must be engaged, and engine at high idle.

3. Press the auto button (B).

4. Crop name (C) will be displayed as actual positions for threshing speed (E), fan speed (F), concave clearance (G), chaffer clearance (H), sieve clearance (I) are being adjusted. The number will flash until respective positions are reached or adjusted manually.

5. Pressing the back button will stop the automatic adjustment.

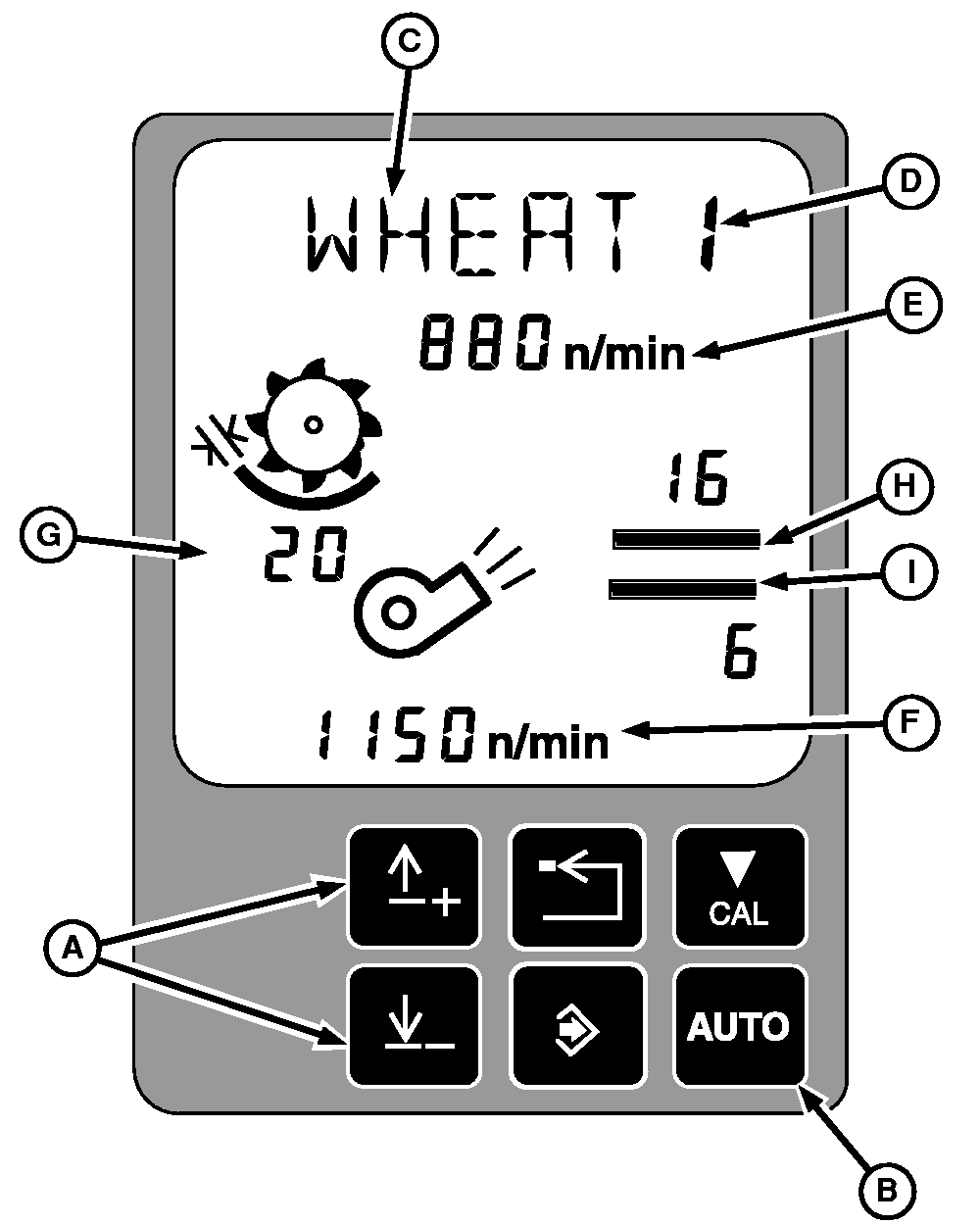

A-Up or Down Arrows
B-Auto Button
C-Crop Name
D-Crop Setting
E-Threshing Speed
F-Fan Speed
G-Concave Clearance
H-Sieve Clearance
I-Chaffer Clearance
