CONTOUR MASTER Angle Sensor Calibration

The CONTOUR MASTER angle sensor is calibrated using the CONTOUR MASTER calibration procedure. The CONTOUR MASTER calibration procedure must be performed before initial use or when the CONTOUR MASTER sensor is replaced.

Prepare the header for calibration:

  • Make sure the CONTOUR MASTER sensor is operating.
  • Start the combine and raise the header completely.

OUO6075,0002713 -19-18FEB03-1/12

Press the diagnostic switch. DIA will appear on the triple display tachometer.

H71445

OUO6075,0002713 -19-18FEB03-2/12

Press the calibration switch. CAL and conc will appear on the triple display tachometer.

H68151

OUO6075,0002713 -19-18FEB03-3/12

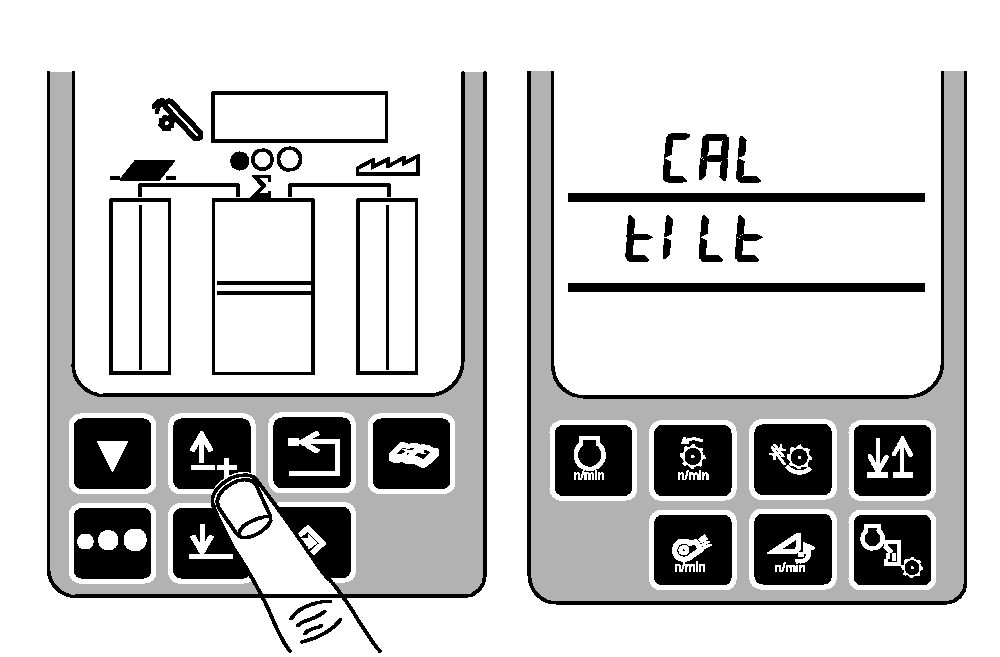

Press the up or down arrow switch to access the tiLt calibration mode. CAL and tiLt will appear on the triple display tachometer.

H68164

OUO6075,0002713 -19-18FEB03-4/12

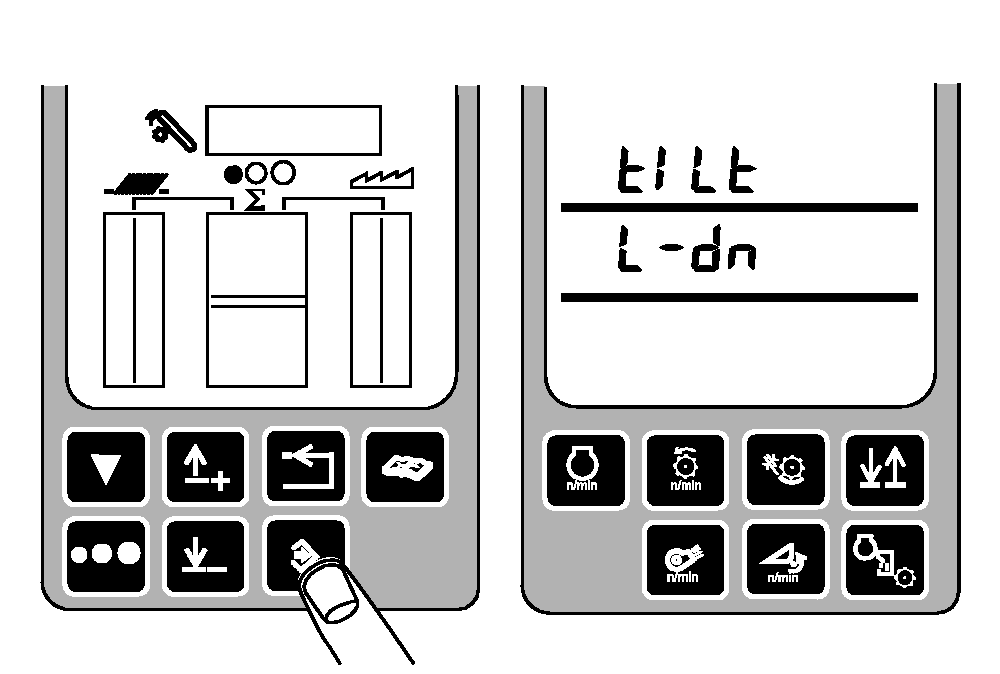

Press the enter switch. tiLt and L - dn will appear on the triple display tachometer.

H68165

OUO6075,0002713 -19-18FEB03-5/12

To establish the left tilt sensor setting:

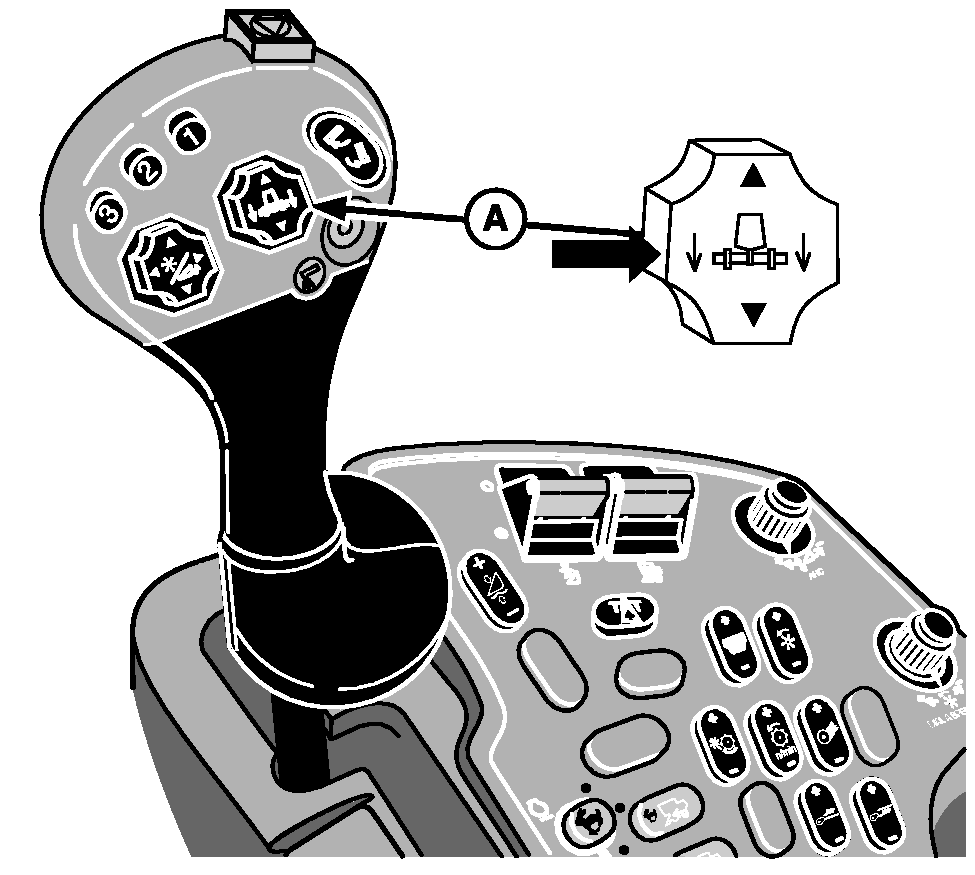

Press and hold the left side of the tilt switch (A) until the feeder house rotates completely to the left. This establishes the left tilt sensor setting.


A-Tilt Switch

H74748

OUO6075,0002713 -19-18FEB03-6/12

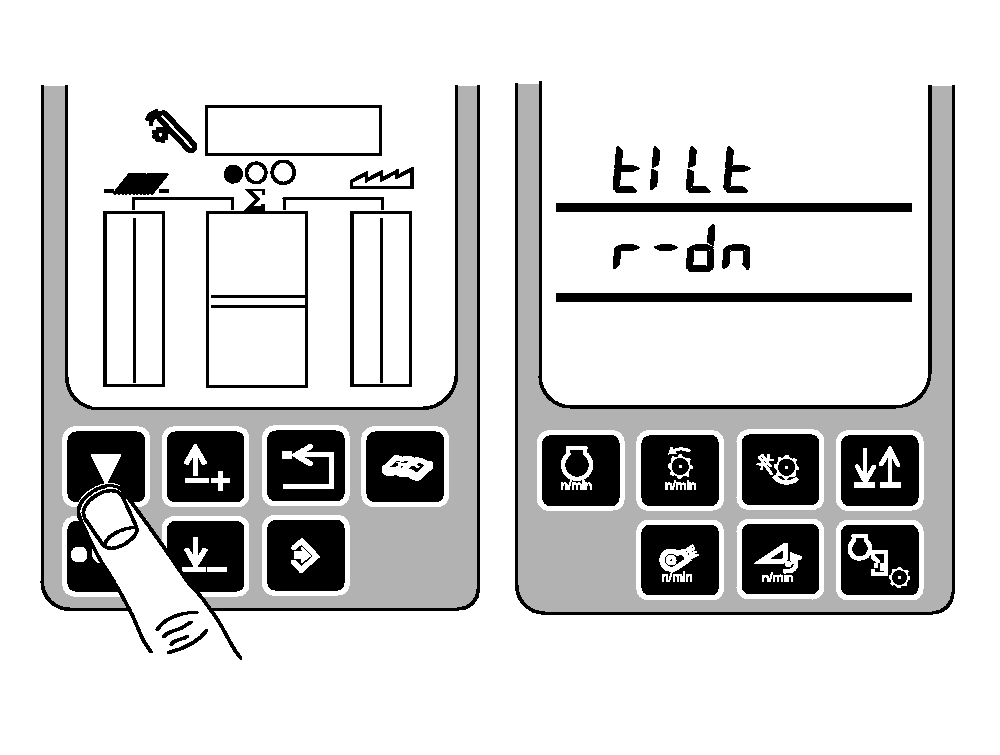

Press the calibration button. tiLt and r - dn will appear on the triple display tachometer.

H68166

OUO6075,0002713 -19-18FEB03-7/12

To establish the right tilt sensor setting:

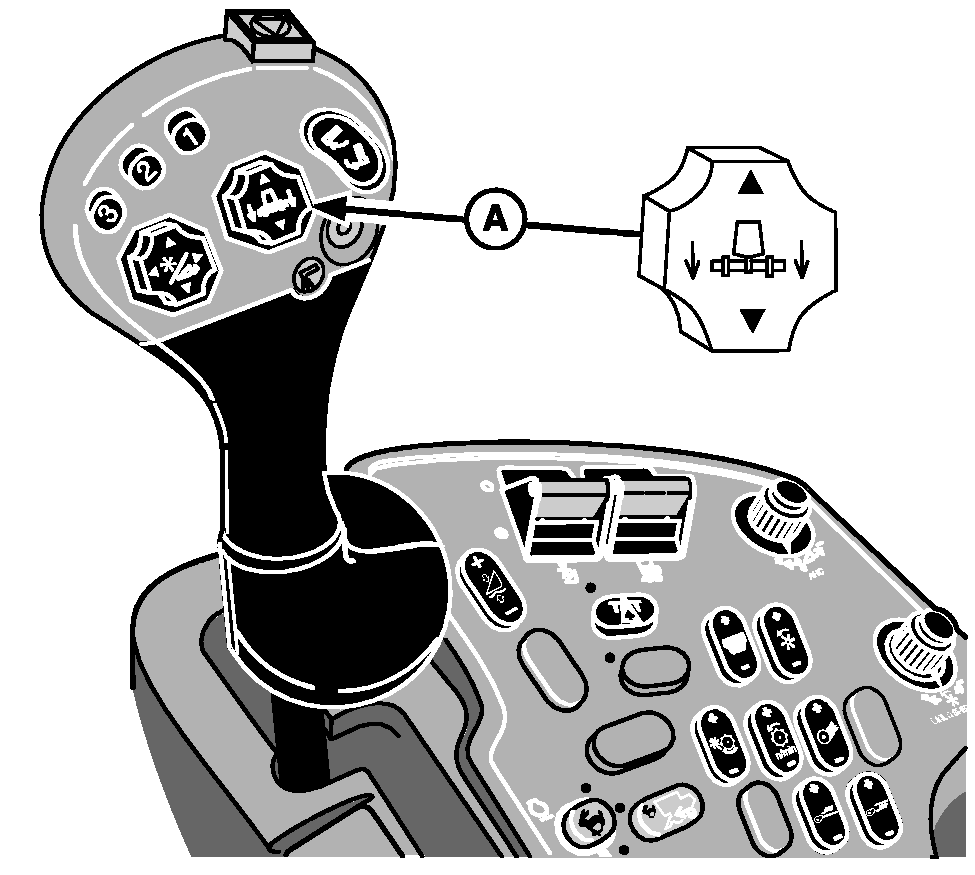

Press and hold the right side of the tilt switch (A) until the feeder house rotates completely to the right. This establishes the right tilt sensor setting.


A-Tilt Switch

H74747

OUO6075,0002713 -19-18FEB03-8/12

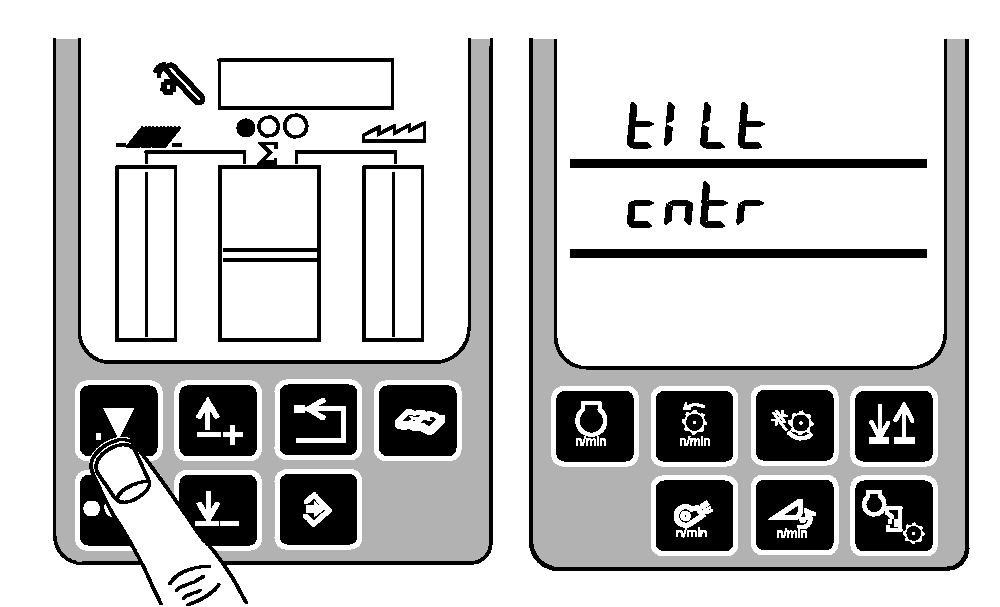

Press the calibration switch. tiLt and cntr will appear on the triple display tachometer.

H68167

OUO6075,0002713 -19-18FEB03-9/12

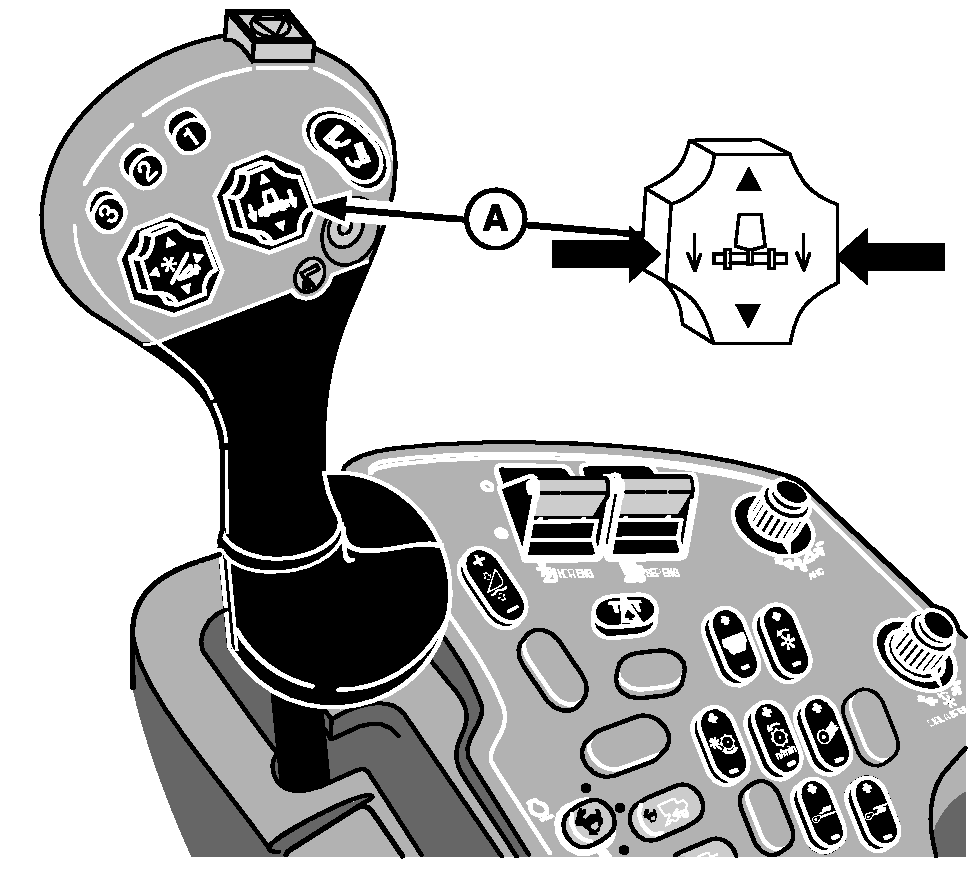

Use the tilt switch (A) to level the feeder house.

For a visual indication of whether the header is level with the combine chassis, the CONTOUR MASTER feeder house is equipped with a manual indicator.

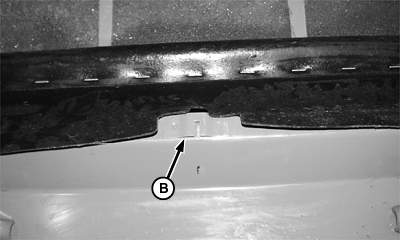

When the notch (B) is in the center of the rubber seal, the header is approximately level with the combine body.


A-Tilt Switch
B-Notch

H74749
H62284

OUO6075,0002713 -19-18FEB03-10/12

Press the calibration switch. EOC will appear on the triple display tachometer.

H68162

OUO6075,0002713 -19-18FEB03-11/12

Press the enter switch to store the calibration value or press the back arrow switch to abort the calibration (and not save values).

Press the back arrow switch to return to normal operation.
