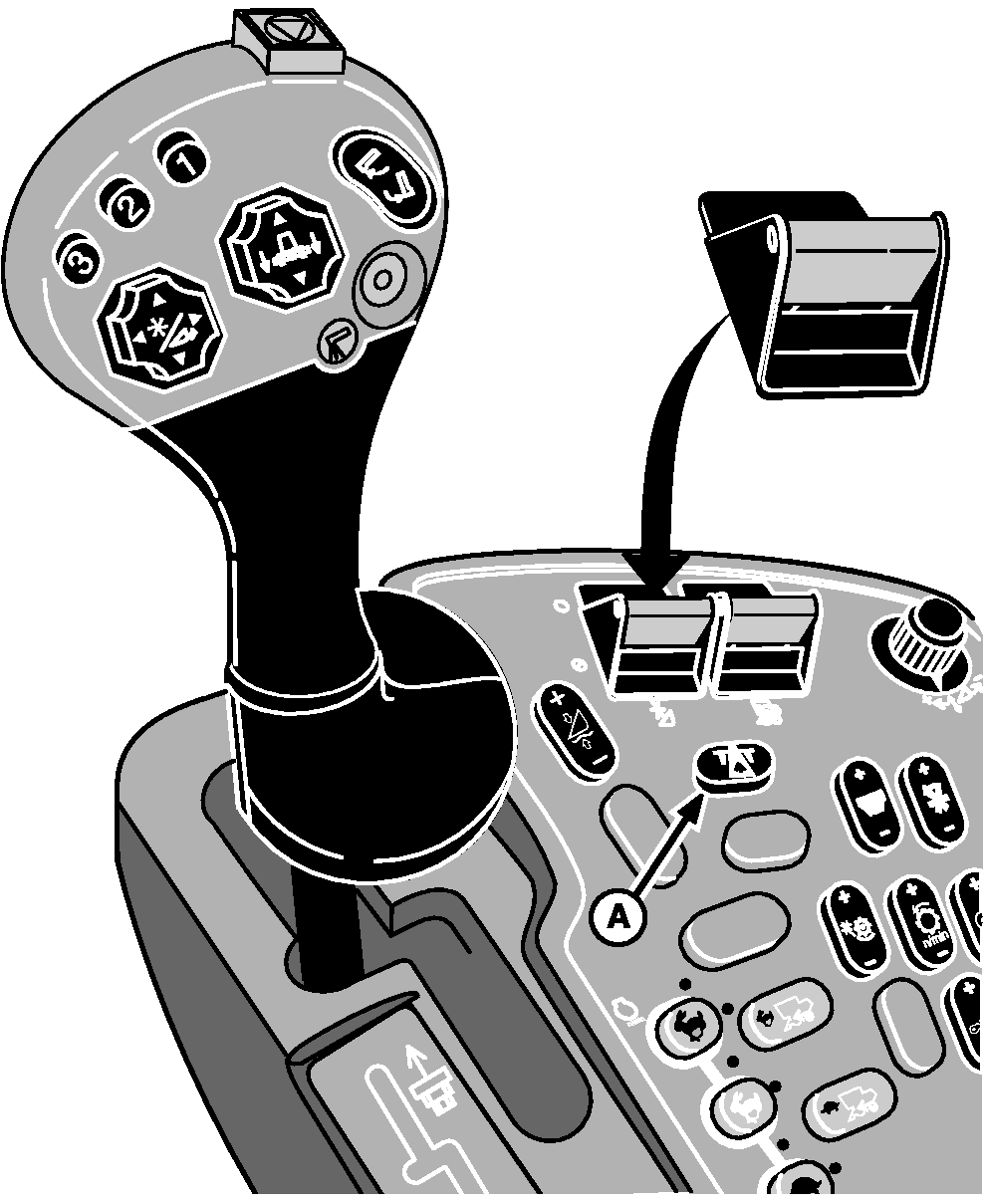

Header Engage Switch and Feeder House Reverser Switch (Yellow)

IMPORTANT: When reversing, allow head to come to a complete stop before re-engaging.

Turns header drive "ON/OFF". Push down and push forward to lock switch in the "ON" position. Pull back to turn "OFF".

To engage feeder house reverser, push down, pull back and hold reverser button.

To engage header, road transport disconnect switch (A) must be in the field position.

This switch must be "OFF" to start the engine. Header drive can also be shut off with the Quick Stop switch located on top of the multi-function lever.

To re-engage the header if header and unloading auger are stopped with the Quick Stop switch, turn header switch "OFF" and then back "ON".

Operator must be seated to operate header. If operator leaves seat after engagement, header will continue to operate for five seconds before it disengages. To re-engage, sit in seat then turn switch "OFF" and then back "ON".

If the header fails to engage or stops unexpectedly, sit squarely on the seat, turn the switch "OFF", push down and forward on switch to re-engage.

A-Road Transport Disconnect Switch

OUO6075,0002873 -19-18MAR03-1/1
