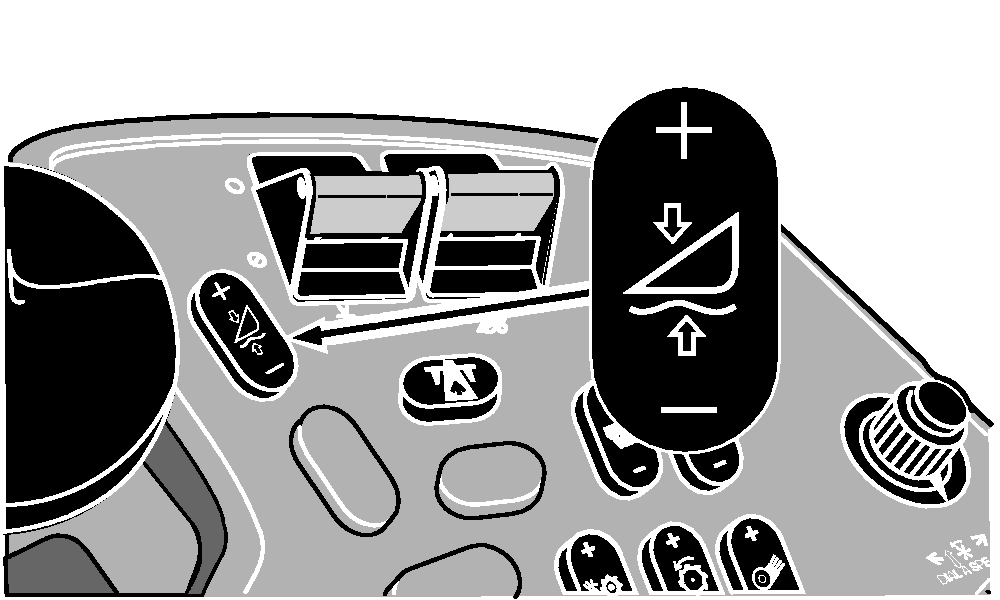

HYDRAFLEX™ Control Button (Black)

NOTE: The HYDRAFLEX button will only work on HYDRAFLEX equipped platforms.

The HYDRAFLEX button controls the pressure in the HYDRAFLEX cutterbar. Press the top (+) symbol button to increase the hydraulic pressure and press the bottom (-) symbol button to decrease the hydraulic pressure.

HYDRAFLEX is a trademark of Deere & Company

OUO6075,0002878 -19-18MAR03-1/1
