Grain Tank Loading Auger Deflector

CAUTION: Shut off engine, set park brake and remove key.

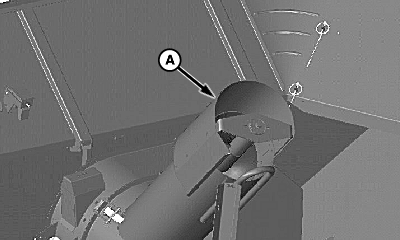

Position deflector (A) as needed.

Out or up position:

Windy conditions when harvesting crops like grass seed or rape.

Corn-Grain tank will fill to the left and to the rear.

In or down position:

Grain-Grain tank will fill to the right and to the front.

A-Deflector

OUO6075,00029CD -19-31MAR03-1/1
