Crop Diverter

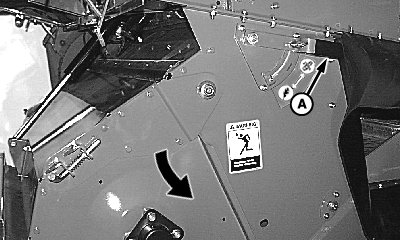

Corn Position

IMPORTANT: To prevent personal injury or machine damage do not move chopper handle when combine is running.

When harvesting in corn or sunflowers, crop diverter handle (A) should be in the "UPPER" position. The crop diverter protects the cleaning shoe from damage by preventing material from being thrown forward.

A-Crop Diverter Handle (Corn Position)

OUO6075,0002A6A -19-01APR03-1/2

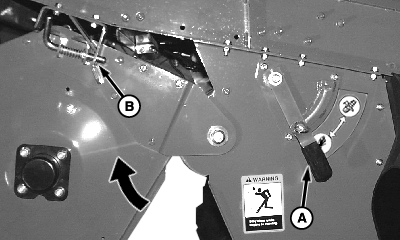

Small Grain/Servicing Position

IMPORTANT: To prevent personal injury or machine damage do not move chopper handle when combine is running.

When harvesting in small grains, crop diverter handle (A) should be in the "LOWER" position. When servicing the cleaning shoe, crop diverter handle can be placed in this position to allow better access.

Raise chopper to the lockout position (B).

A-Crop Diverter Handle (Small Grain/Servicing Position)
B-Lockout Position

OUO6075,0002A6A -19-01APR03-2/2
