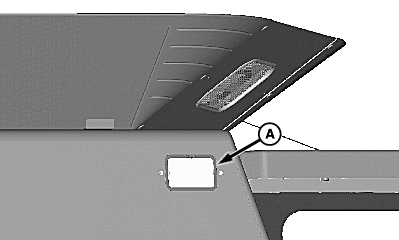

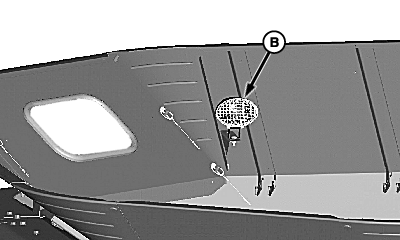

Side Finder and Grain Tank LightsThe side finder lights (A) are used when additional light to the sides is needed. These lights are controlled by the turn signal lever and operate only when the field light switch is "ON". The grain tank light (B) operates with the field light switch.
|
|
