Grain Tank Cross Auger Covers

CAUTION: Shut off engine, set parking brake and remove key.

Normal Position:

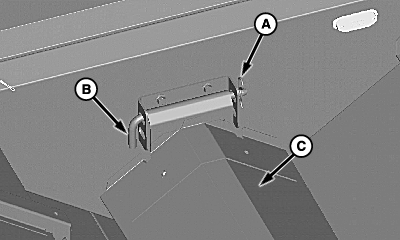

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and re-install pins and lock pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Covers should be set to the up most position for all crops.

A-Locking Pins
B-Pins
C-Auger Cover

OUO6075,0002A83 -19-01APR03-1/1
