Engine Fan/Alternator Belt-Replacing

causym CAUTION: Shut off engine, set parking brake and remove key.

Loosen idler (A) and remove rotary screen drive belt (B).


A-Idler
B-Rotary Screen Drive Belt

H66122

OUO6075,0002A98 -19-02APR03-1/2

H71844

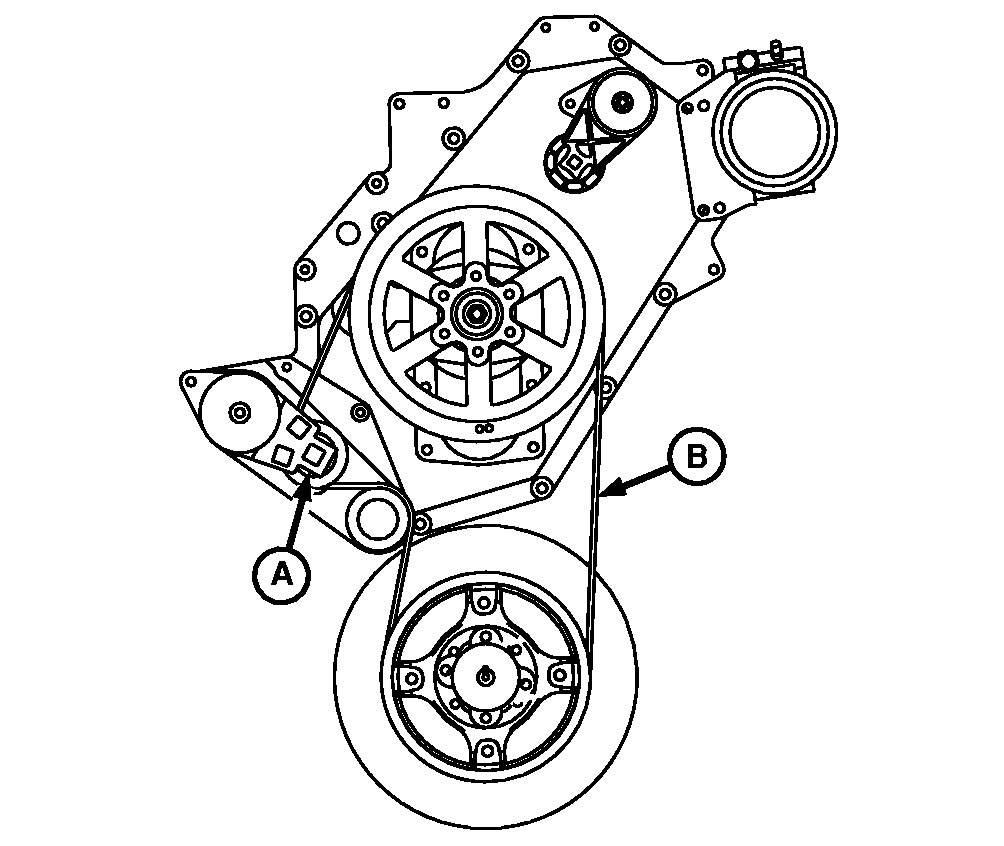

Fan Belt Routing
H71845

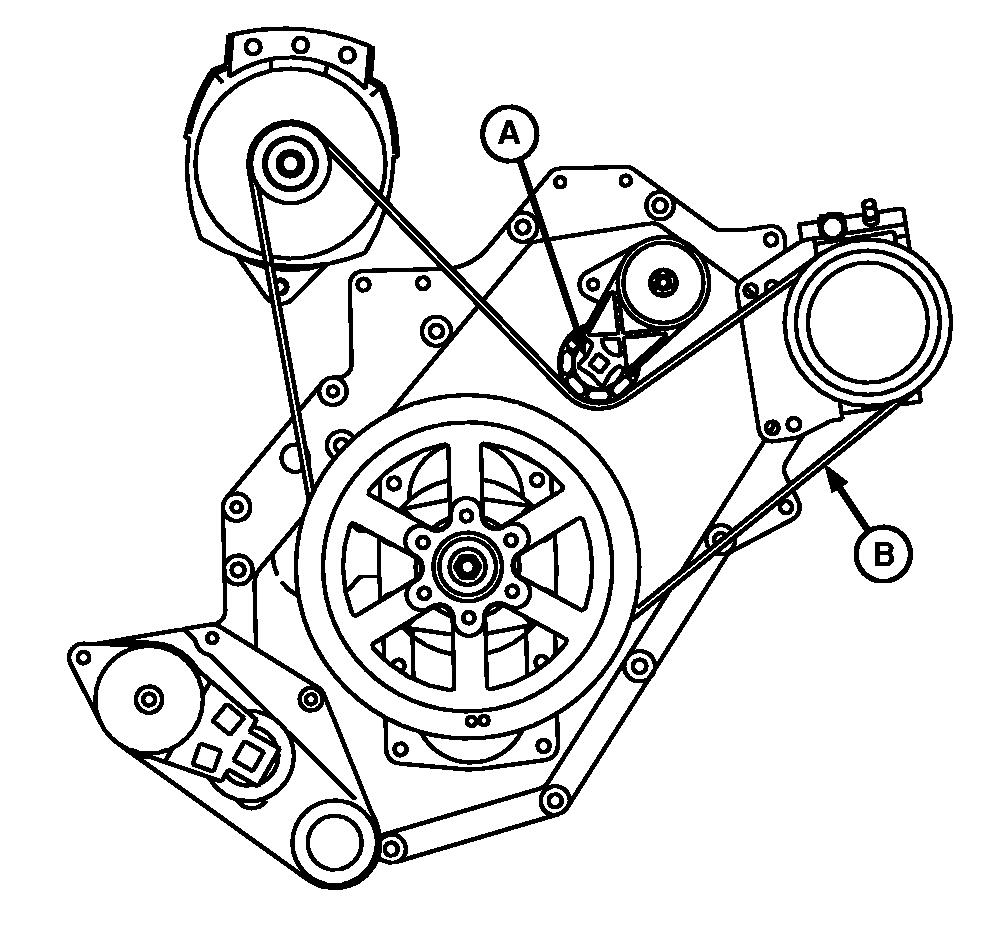

Alternator Belt Routing


A-Square Hole

B-Belt



To remove belt, insert 1/2 in. drive breaker bar into square hole (A) in idler to release tension on belt.

Remove belt (B) from engine. Work belt over fan and remove belt.

Install new belt in reverse order.

OUO6075,0002A98 -19-02APR03-2/2
