Rotary Screen Drive Belt-Replacing

CAUTION: Shut off engine, set parking brake and remove key.

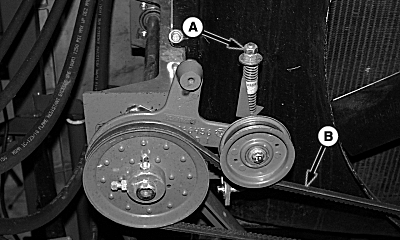

Loosen nut (A) and remove rotary screen drive belt (B).

Install new belt.

Tighten nut until gauge aligns with end of spring.

A-Nut
B-Rotary Screen Drive Belt

OUO6075,0002A99 -19-02APR03-1/1
