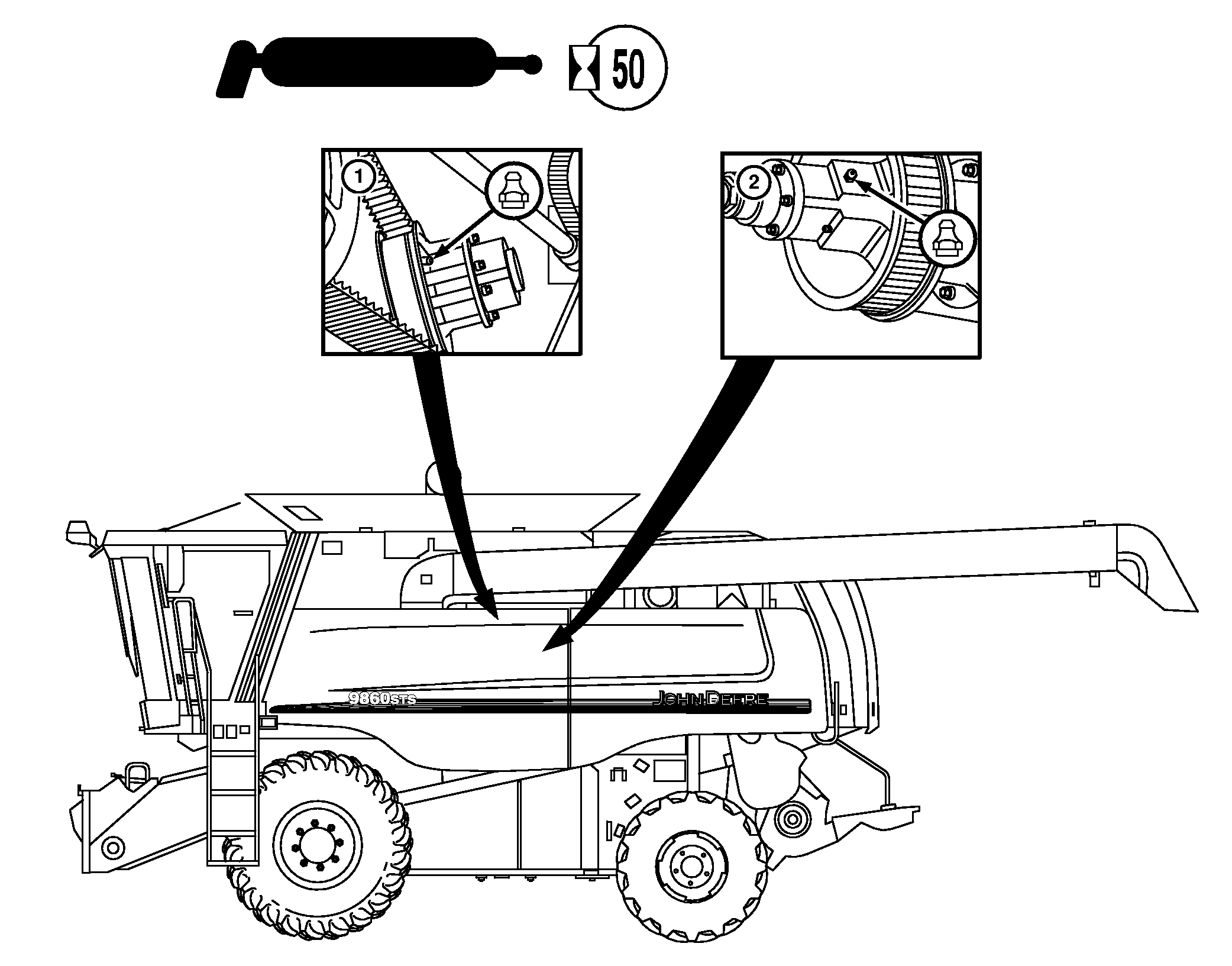

IMPORTANT: STS Variable Speed Driven and Variable Driver Sheaves: Pump 20 to 25 shots of grease into fitting. DO NOT OVER GREASE.

1. Single Tine Separator Variable Speed Driven Sheaves. Rotate sheaves for fitting access.

2. Single Tine Separator Variable Driver Sheave. Close sheaves (high speed) before greasing fitting in outer sheave hub. Rotate sheave for fitting access. Cycle cylinder speed to distribute grease if drive is operated at high speed all the time.

OUO6075,0002B34 -19-17APR03-1/1
