Every 400 Hours

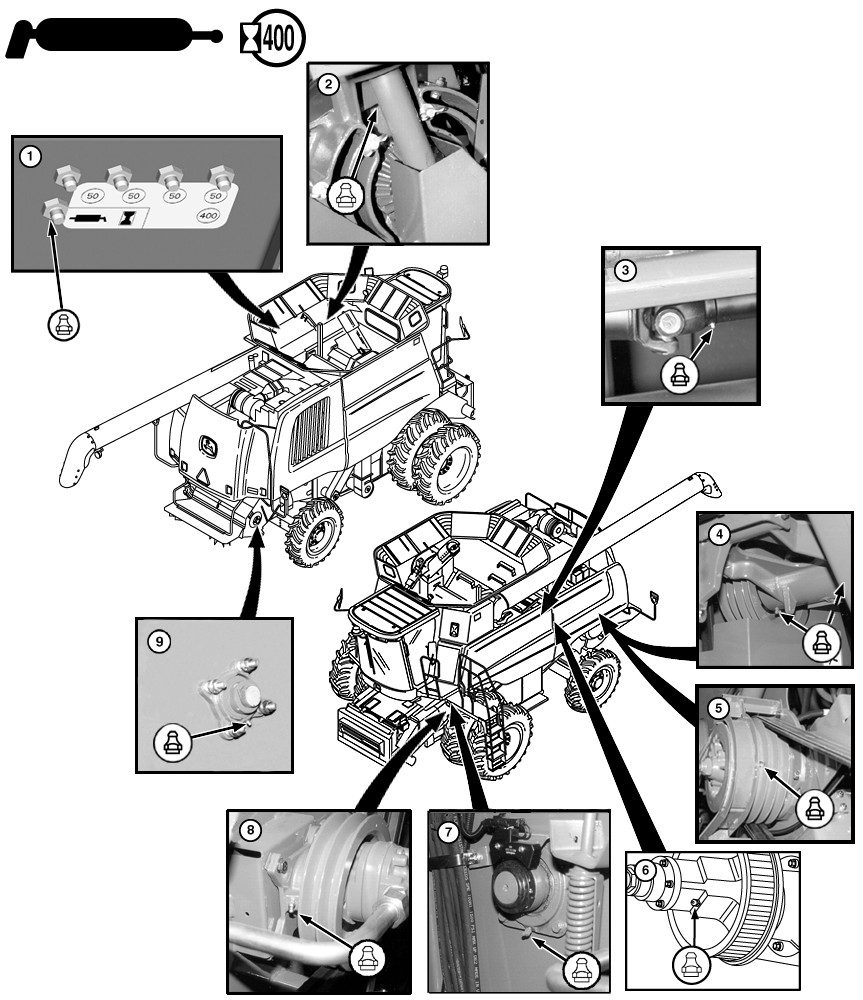

H75832

OUO6075,0002B3B -19-17APR03-1/2

1. Unloading Auger Upper Gear Case. Lube one fitting.

2. Unloading Auger Lower Gear Case Bearing. Lube one fitting.

3. Separator Countershaft U-Joint Driveshaft Slip Spline. Rotate to access fitting.

4. Chopper and Discharge Beater Countershaft Bearings. Lube two fittings.

5. Chopper/Unloading Driveshaft Bearing. Rotate sheave to access fitting in bottom of sheave groove.

IMPORTANT: Remove pipe plug and install grease fitting. Pump 40 to 45 shots of

grease into fitting. DO NOT OVER GREASE. Remove grease fitting and reinstall pipe plug.

6. Single Tine Separator Variable Driver Sheave. Close sheaves (high speed) before greasing at pipe plug in outer sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if drive is operated at high speed all the time.

7. Feed Accelerator Bearing. Lube one fitting.

8. Header/Reel Drive Pump Drive Sheave Bearing. Lube one fitting.

9. Chopper Rotor Bearings. Lube one fitting (both sides).

OUO6075,0002B3B -19-17APR03-2/2
