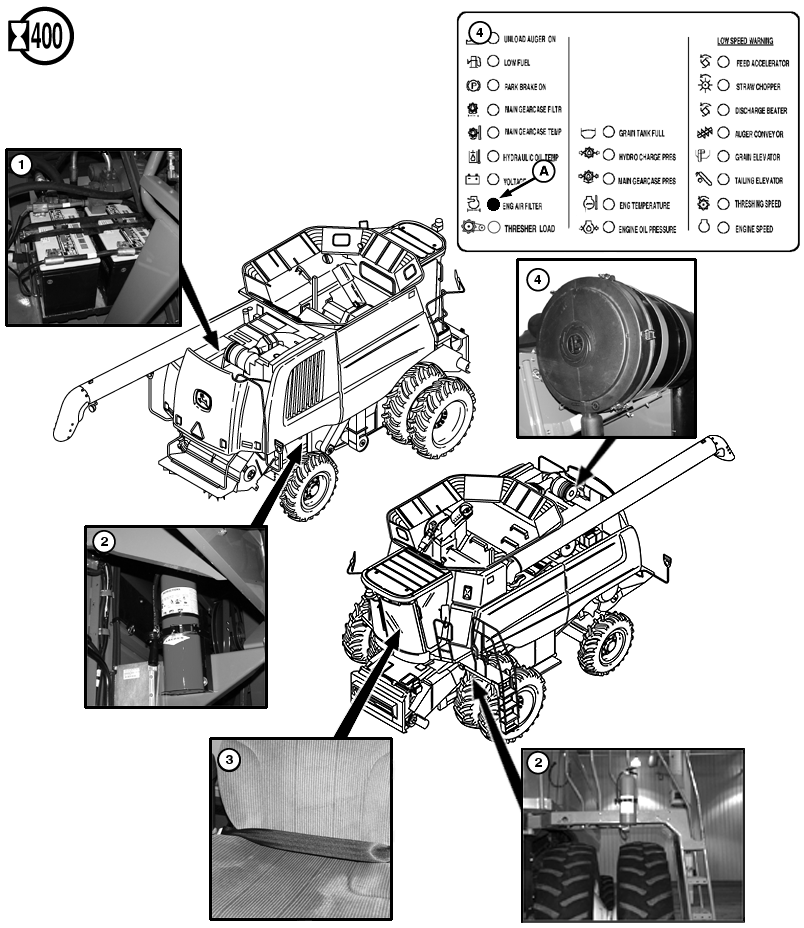

Every 400 Hours

H75836


A-Warning Light



1. Batteries. Clean top of batteries and check level in each cell. Fill to bottom of filler neck with distilled 		water if needed. Clean battery posts and cables. Tighten connections, iff needed.

OUO6075,0002B3F -19-17APR03-1/2

2. Inspect fire extinguishers (front and rear) by following the maintenance instructions on the fire extinguisher label. Recharge or replace as necessary.

IMPORTANT: Inspect seat belt and mounting hardware on your machine at least once a year. If seat belt system, including the mounting hardware, buckle, belt or retractor, shows any sign of damage or unusual wear, discoloration, or abrasion the entire seat belt should be replaced

immediately. For your safety, replace the seat belt system with replacement parts approved for your machine. See your John Deere dealer.

3. Inspect seat belt.

4. Air Cleaner Element. Service primary filter every 400 hours or as required by warning light (A). Check precleaner for plugging, leaks and for collapse of aspirator tube. Replace elements if plugged.

OUO6075,0002B3F -19-17APR03-2/2
