Service As Required
|
|
1.

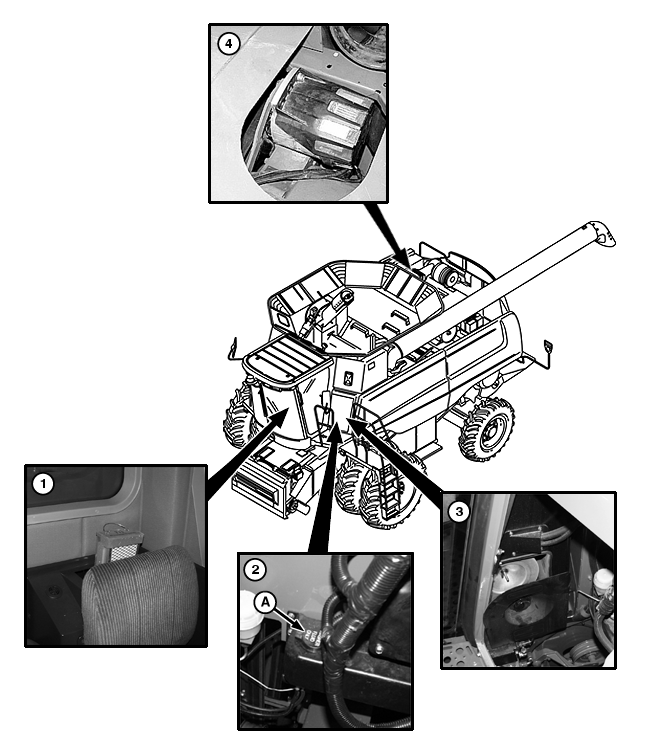

Recirculating Filter. Remove tray, reach in and lift out filter. Clean or replace as needed. Make sure air flow arrow points towards front of cab.
2. Windshield Washer Reservoir (Optional). Open cap (A) and fill as needed with solvent. |
3. Cab Fresh Air Filter. Turn knob and pull out tray. Remove wing nut and filter. Clean or replace as needed. 4. Alternator Screen. Clean alternator screen when 50% covered with debris. |
OUO6075,0002B42 -19-17APR03-1/1 |
