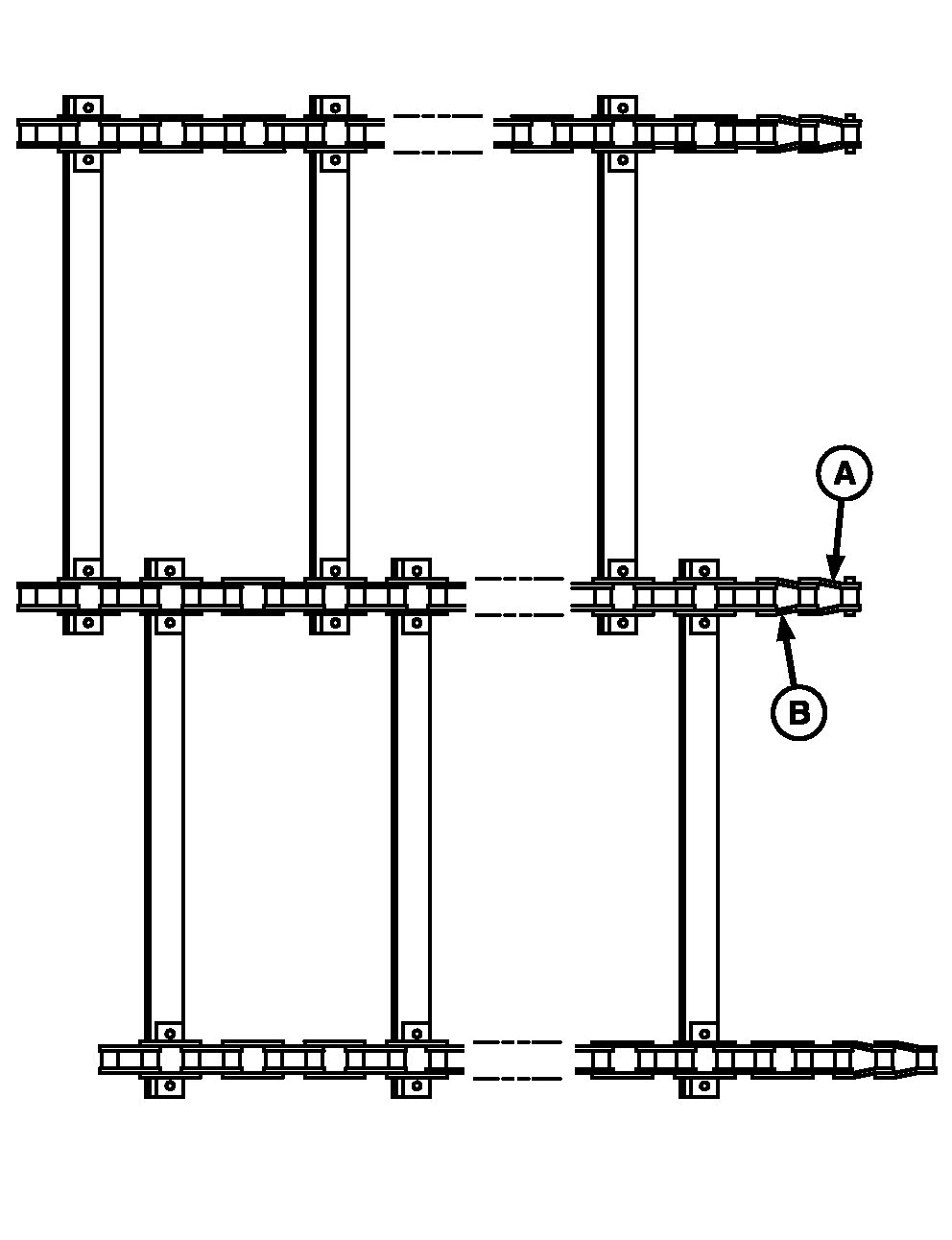

Feeder House Conveyor Chain Links-RemovingRemove offset links (A) for initial chain adjustment. Remove offset links (B) for second adjustment. When adjustment is all used up from the second adjustment, the chain is worn out and should be replaced. NOTE: When replacing chain links always check sprockets for wear.
|
|
