Gull Wing Doors

causym CAUTION: Turn off engine, set park brake and remove key.


A-Pin Locations

H75112

Left-Hand Gull Wing Door Pin Locations

H76154

Right-Hand Gull Wing Door Pin Location

OUO6075,0002BAF -19-24APR03-1/4

NOTE: Pinning and latch lever operation is the same on both sides of machine.

1. To open doors on either side of machine, remove spring clip, and pin (A) from locking plate (B). Reinstall spring clip (C) onto pin.


A-Pin
B-Locking Plates
C-Spring Clip

H64205

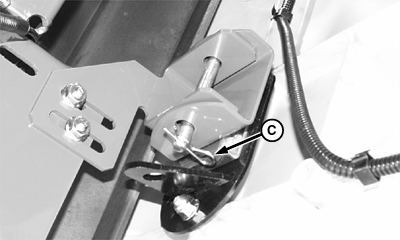

Left-Hand Front Corner Shown

H64206

OUO6075,0002BAF -19-24APR03-2/4

2. Pull out on latch levers (A), then pull out on gull wing door to raise.


A-Latch Levers

H75701

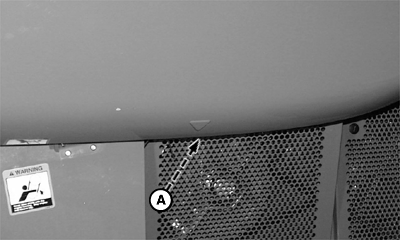

Right-Hand Door Latch

H75702

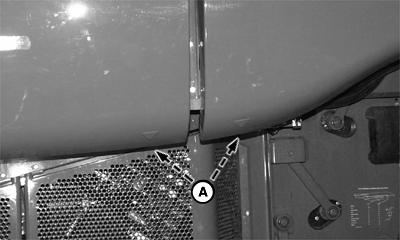

Left-Hand Door Latches

OUO6075,0002BAF -19-24APR03-3/4

IMPORTANT: Do not use cylinders (A) as hand holds or hang anything on these cylinders. This could cause the cylinder rod to bend or break.

In cold weather or in high winds, these gull wing doors may "creep" down. Position stop on rod to hold shield up.


A-Cylinders

H76219

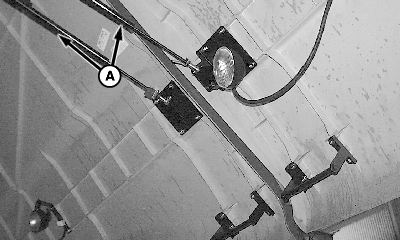

Left-hand Cylinder Stop Shown
