Feed Accelerator Belt Idler-Adjusting

CAUTION: Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.

The accelerator belt idler is located on the right-hand side of the combine behind the feeder house pivot.

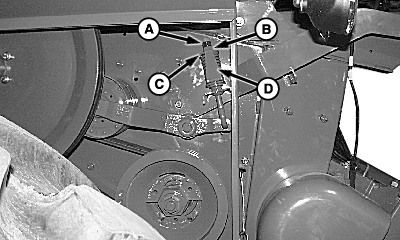

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with the end of gauge (D). Tighten locking nut.

A-Locking Nut
B-Nut
C-Washer
D-Gauge
