Tailings Elevator Drive Belt-Adjusting

CAUTION: Shut off engine, set parking brake and remove key.

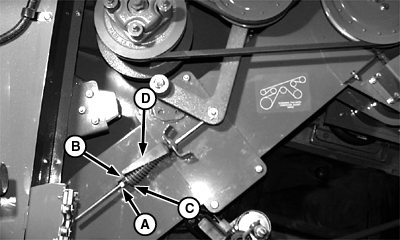

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with end of gauge (D).

Tighten locking nut.

A-Locking Nut
B-Nut
C-Washer
D-Gauge

OUO6075,0002BB9 -19-25APR03-1/1
