Discharge Beater Belt-Adjusting

CAUTION: Shut off engine, set parking brake and remove key.

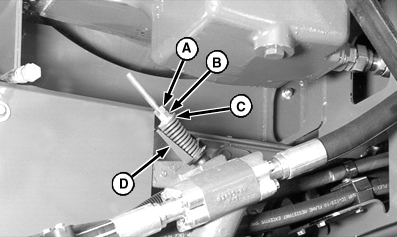

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with the end of gauge (D).

Tighten locking nut.

This also adjusts tension for chopper jackshaft drive belt.

A-Locking Nut
B-Nut
C-Washer
D-Gauge
