Feeder House Side Shields

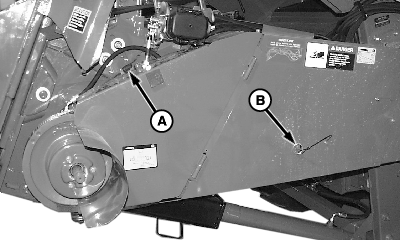

The left-hand and right-hand side of the feeder house have a front and rear shield. Lift rubber strap (A) and swing front shield open for service. Remove quick-lock pin (B) to remove rear shield.
|
|
CAUTION:
Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.
OUO6075,0002BC8 -19-28APR03-1/1 |
