Transporting Combine on a Trailer

causym CAUTION: Avoid collisions with other roadway users. Before transporting on a public roadway check and follow local regulations regarding the use of lights, flags, over-width signs, pilot vehicles and other requirements for wide loads.

1. Empty grain tank, swing unloading auger back, remove header and remove outside dual wheels (if equipped).

OUO6075,0002BD8 -19-29APR03-1/11

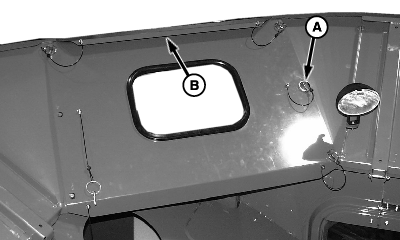

2. To reduce overall height of combine, remove quick-lock pins (A) and grain tank corner extensions (B) (if equipped).


A-Quick-Lock Pins
B-Grain Tank Corner Extensions

H75331

Front Grain Tank Extension Shown

OUO6075,0002BD8 -19-29APR03-2/11

NOTE: It is important to fold the front and rear grain tank extensions in first, then fold the left-hand and right-hand grain tank extensions in last to reduce the height the machine.

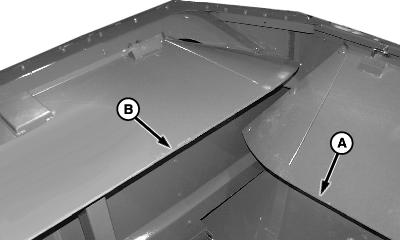

3. Fold down front and rear grain tank extensions, then fold down left-hand and right hand grain tank extensions (if equipped).


A-Front and Rear Grain Tank Extensions
B-Left-Hand and Right-Hand Grain Tank Extensions

H75332

OUO6075,0002BD8 -19-29APR03-3/11

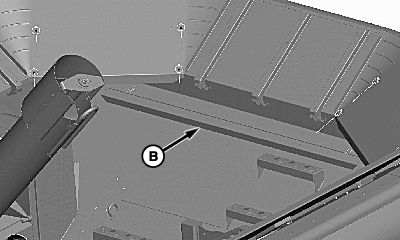

4. Remove quick-lock pin (A) and sample trough (B).

5. Place grain sample trough in storage position.

6. Release clamps (C) and lower auger.


A-Quick-Lock Pin
B-Grain Sample Trough
C-Clamps

H62116
H75363

Storage Position

H62117

OUO6075,0002BD8 -19-29APR03-4/11

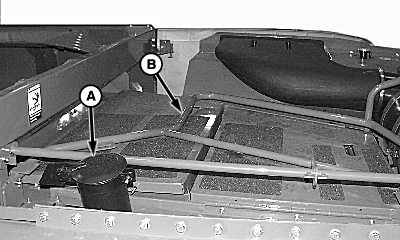

7. Tape exhaust pipe cap (A) closed to prevent damage to turbocharger.

8. Lower hand rail (B).


A-Exhaust Pipe Cap
B-Hand Rail

H76234

OUO6075,0002BD8 -19-29APR03-5/11

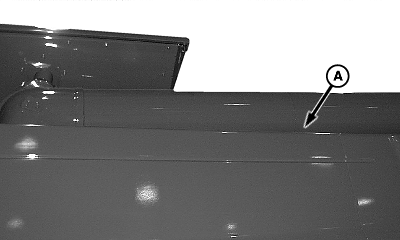

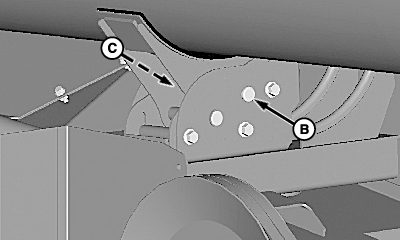

causym CAUTION: Possible injury or death to you or other can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location (A) when installing unloading auger retaining pin (B). Do not attempt to access location from engine platform.

9. Retrieve pin (B) and spring pin (C) from combine tool box.

10. Install hardware as shown to retain unloading auger.


A-Location
B-Pin
C-Spring Pin

TS249
H74971
H75149

OUO6075,0002BD8 -19-29APR03-6/11

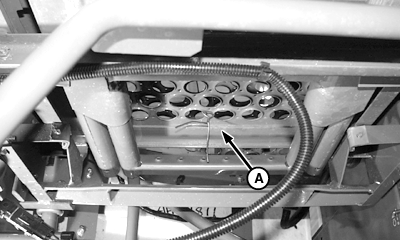

11. Wire down ladder extension and platform (A).


A-Ladder Extension and Platform

H61818

OUO6075,0002BD8 -19-29APR03-7/11

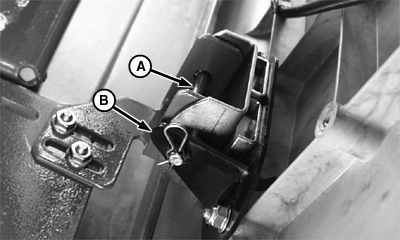

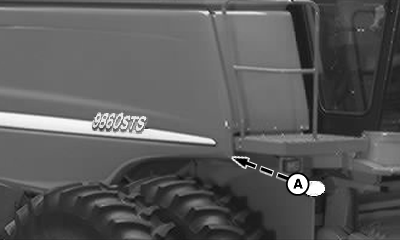

12. Make sure that pin (A) is installed through locking plate (B) and retained with spring pin at front corner of right-hand gull wing door and door latch (C) is fully engaged.

13. Wire down door at latch (C).


A-Pin
B-Locking Plate
C-Door Latch

H62857
H75111
H76223

OUO6075,0002BD8 -19-29APR03-8/11

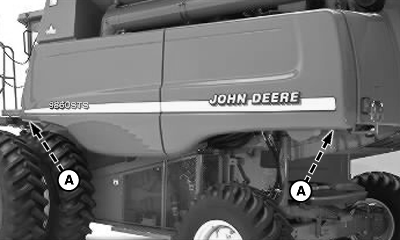

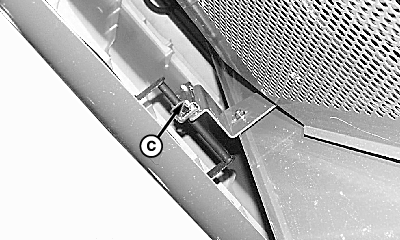

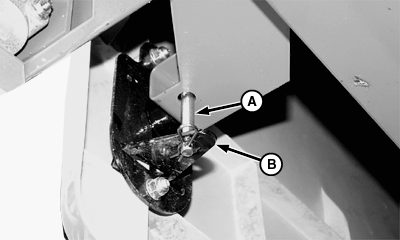

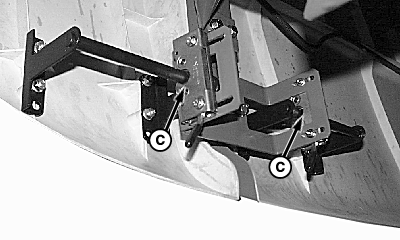

14. Make sure pins (A) are installed through locking plates (B) and retained with spring pins at front and rear corners of left-hand gull wing doors and door latch (C) is fully engaged.

15. Wire down door at latches (C).


A-Pins
B-Locking Plate
C-Door Latches

H64205

Left-Hand Front Corner Pin

H75112
H76222

OUO6075,0002BD8 -19-29APR03-9/11

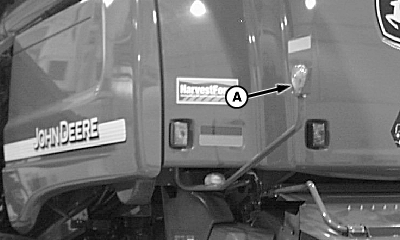

16. Swing left-hand and right-hand warning light (A) rearward.


A-Warning Light

H76725

Left-Hand Warning Light Shown

OUO6075,0002BD8 -19-29APR03-10/11

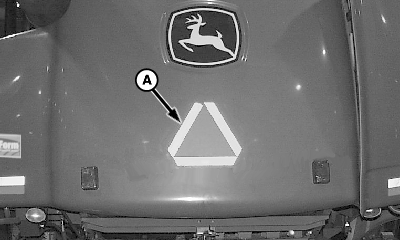

17. Cover up slow moving vehicle emblem (A).

18. Drive combine on trailer and put multi-function handle in neutral.

19. Stop engine, remove key and set parking brake.

20. Fold radio antenna down.

IMPORTANT: Fasten combine to trailer with chains.

21. Fasten combine to trailer with chains.


A-Slow Moving Vehicle Emblem

H76726
