Left-Hand Side Shields

CAUTION: Turn off engine, set parking brake and remove key.

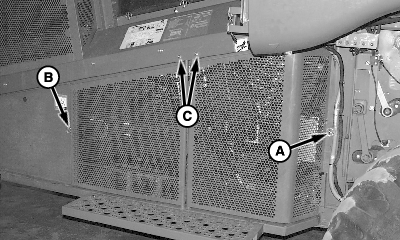

Side Shields- Remove cap screw and lock nut (A) and swing rear shield out.

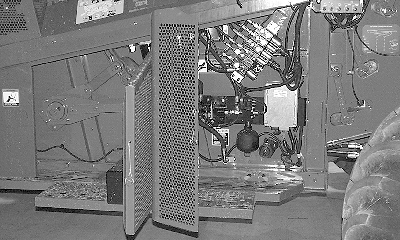

Remove cap screw and lock nut (B) and swing middle shield out.

To remove shields completely, remove cap screws (C) and lift and remove shields.

A-Cap Screw and Lock Nut
B-Cap Screw and Lock Nut
C-Cap Screws

OUO6075,0002C73 -19-07MAY03-1/3

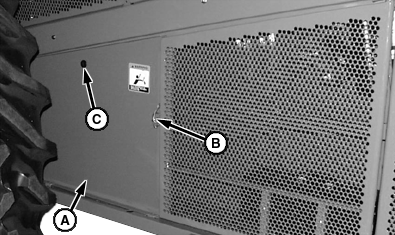

Fan Shield- To remove fan shield (A) remove cap screw and lock nut (B) and swing middle shield out.

Using a screwdriver, turn lock (C) counterclockwise and remove fan shield.

A-Fan Shield
B-Cap Screw and Lock Nut
C-Lock

OUO6075,0002C73 -19-07MAY03-2/3

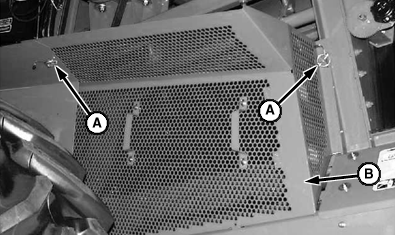

Left-Hand Upper Separator Shield- Remove cap screw and lock nut (A), lift and remove shield (B).

A-Cap Screw and Lock Nut
B-Shield

OUO6075,0002C73 -19-07MAY03-3/3
