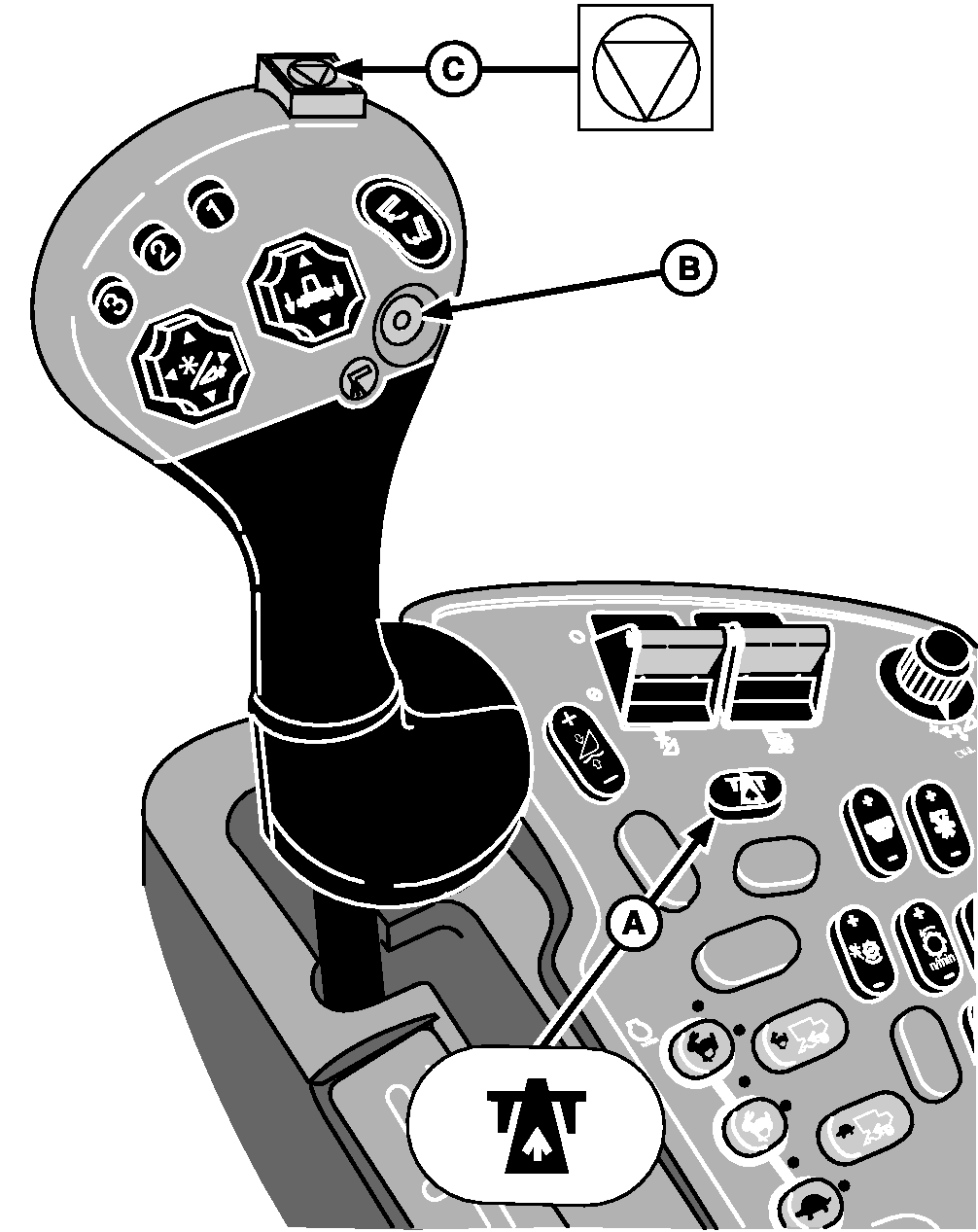

Unloading Auger Drive Switch (Yellow)To engage the unloading auger drive, the road transport disconnect switch (A) must be in field position. Pressing switch (B) turns the unloading auger drive "ON/OFF". The switch has a lighted indicator that comes on when the drive is engaged. The unloading drive can also be turned off with the Quick Stop switch (C) on the top of the multi-function handle. The unloading drive will engage only while the button is held in while the auger is in the auto-swing mode out or when the auger is manually swung out less than 25%. Operator must be seated before the unloading system will engage. If operator leaves the seat after engagement the unloading drive will continue to operate for five seconds before it disengages. To re-engage, sit in the seat and press the unloading auger switch once. If the unloading system fails to engage or stops unexpectedly, sit squarely on the seat, and press the unloading auger switch once. To re-engage the unloading auger if the header and unloading auger are stopped with the Quick Stop switch, press the unloading switch once. |
|
