Feeder House Bottom Door and Feedplate Seal Support

CAUTION: Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.

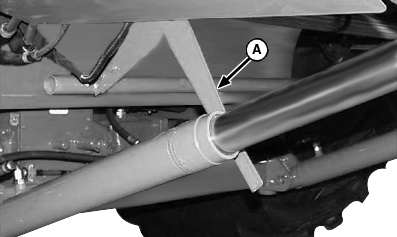

Remove pin and move lever (A) down and rearward to open door.

IMPORTANT: Lever will be bent if left down when feeder house is lowered.

Push lever forward and up to close door. Retain with pin.

A-Lever

OUO6075,0002C7D -19-08MAY03-1/2

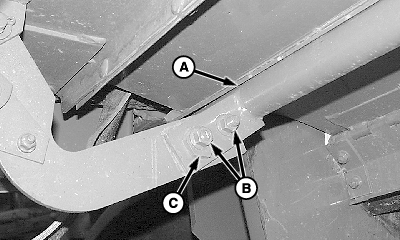

If feeder house door is not sealing tight at (A) grain leakage could occur.

Loosen cap screws (B) on both sides.

Turn eccentric (C).

Tighten cap screw securing eccentric.

Tighten remaining cap screws.

A-Feeder House Door Seal
B-Cap Screws
C-Eccentric
