Feeder House Slip Clutch

causym CAUTION: Shut off engine, set parking brake and remove key.

A slip clutch protects upper shaft, conveyor, and drive chains.

If the slip clutch is removed, tighten flange nut (A) and lock nut (B) to specification.

Specification

Flange and Lock Nuts -Torque 350 N·m (258 lb-ft)

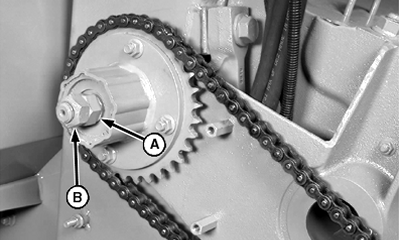

H68182

Shield Removed for Clarity


A-Flange Nut
B-Lock Nut

OUO6075,0002C85 -19-08MAY03-1/1
