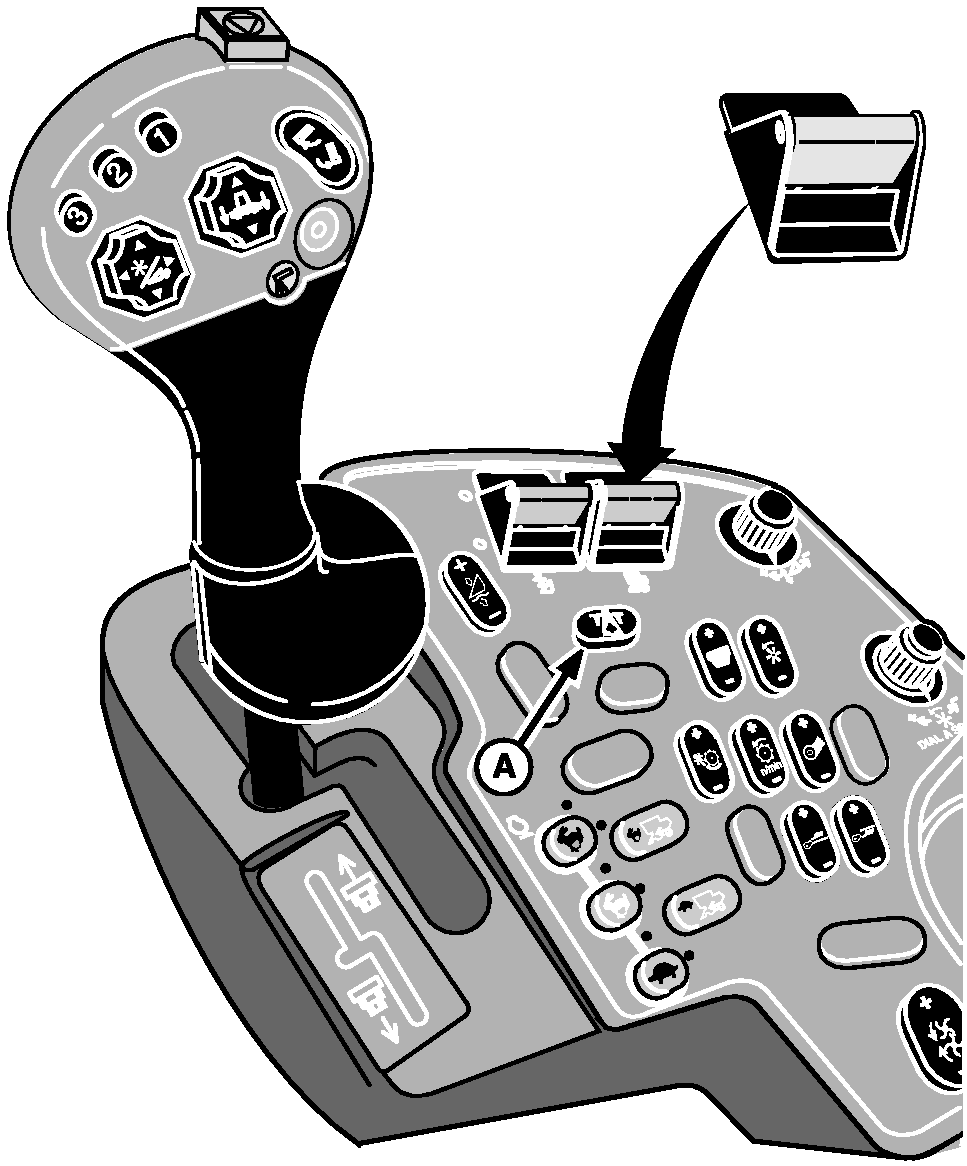

Separator Engage Switch (Yellow)Turns separator drive "ON/OFF". Road transport disconnect switch (A) must be in field position. Push down and forward to lock switch in "ON" position. Pull to turn "OFF". Switch must be in "OFF" position to start engine. Single tine separator drive speed adjust and cleaning fan speed adjust systems only work when separator is running. Separator will disengage if discharge beater speed drops below 300 rpm.
|
|
