Fuel System

CAUTION: Always remove ignition key and set park brake before performing maintenance work on fuel filters.

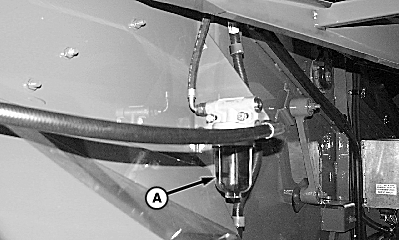

Close fuel shut off on fuel tank. Remove precleaner and clean screen (A) if dirty fuel has been used. Reinstall and open fuel shut off. (See Cleaning Fuel Precleaner in Service Engine section).

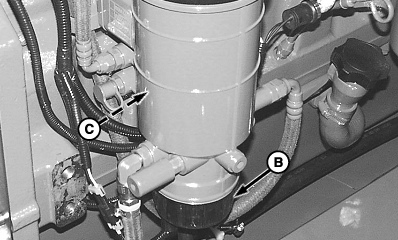

Drain water out of water trap (B) and engine filter. (See Draining Filter Element in Service Engine section).

If dirty fuel has been used replace filter (C). (See Replacing Fuel Filter in Service Engine section).

A-Precleaner Filter
B-Water Trap
C-Filter

OUO6075,00031F5 -19-28OCT03-1/1
