Fuel Precleaner Filter-Cleaning

NOTE: Clean precleaner filter if buildup is visible on screen within fuel filter bowl or if Service Codes 94.01 and 94.18 have been generated on the cornerpost.

1. Start engine and run 3 to 5 minutes at low idle if machine had not been previously running.

2. Shut "OFF" engine.

3. Close fuel shut off at bottom of fuel tank to prevent drain back within supply line.

4. Thoroughly clean fuel precleaner assembly and surrounding area.

5. Remove precleaner bowl (A) using a 25 mm (1 in.) socket on bottom of bowl.

6. Clean the screen and bowl. Inspect the o-ring (B).

7. Install screen and tighten bowl.

8. Open fuel shut off to allow precleaner to fill.

9. Start engine and run 3 to 5 minutes at low idle.

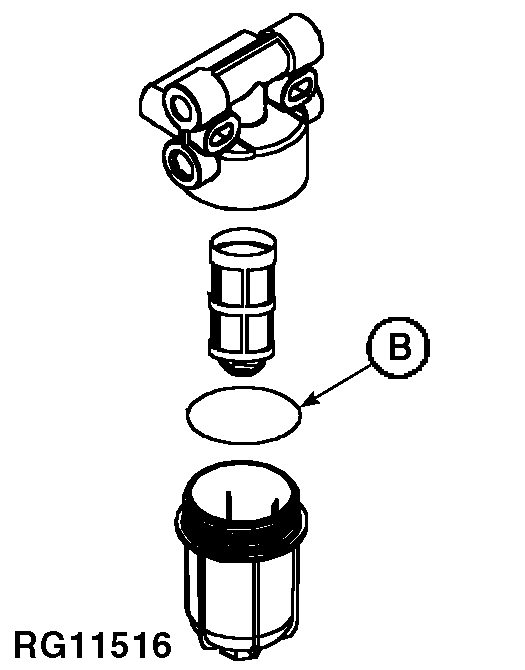

A-Precleaner Bowl
B-O-ring

OUO6075,00031F6 -19-28OCT03-1/1
