Transporting Corn Head on a Trailer

CAUTION: Follow local regulations regarding width, lighting and marking.

IMPORTANT: Whenever possible avoid transporting the combine with the corn head attached. Instead, transport the corn head on a truck or header trailer.

Follow the header trailer manufacturer's recommendations regarding safe transport procedures. In absence of such intructions follow these guidelines:

• Do not transport at speeds greater than 32 km/h (20 mph) trailers without brakes and 40 km/h (25 mph) trailer with brakes.

• Always attach a properly sized safety tow chain.

• Always make sure a slow moving vehicle emblem is mounted to the rear of the trailer or header.

• Always make sure that the rear of the trailer is equipped with red reflectors, two red tailights and turn signals.

Reference combine Operator's Manual for combine transporting procedures.

IMPORTANT: If equipped with ACTIVE HEADER CONTROL (AHC) ™ ground sensors, the sensors must be placed in storage position to prevent equipment damage when folding points (see next page for procedures).

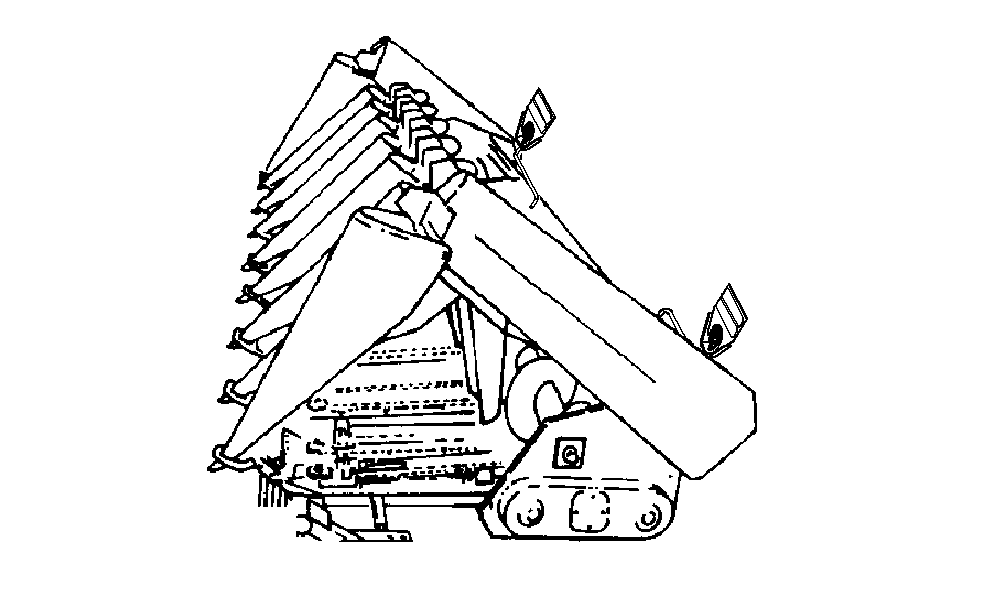

To reduce transport width, the points and gathering shields should be folded upwards (see Points Folded for Transport illustration).

ACTIVE HEADER CONTROL is a trademark of Deere & Company

OUO6091,0001602 -19-11MAR03-1/7

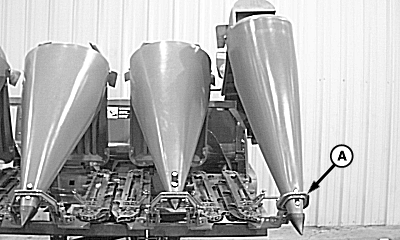

(Center Gatherer Shields) Raise the point and remove quick-lock pins (A).

(Center Gatherer Shields) Remove spring locking pin and drilled pin (B).

A-Quick Lock Pin
B-Drilled Pin

OUO6091,0001602 -19-11MAR03-2/7

(Center Gatherer Shields) Press down on the point tip and pivot the point and gathering shield upwards and insert point through support (A) and insert drilled pin through pin support and transport loop (B). Retain drilled pin using spring locking pin.

A-Support
B-Transport Loop

OUO6091,0001602 -19-11MAR03-3/7

IMPORTANT: If equipped with ACTIVE HEADER CONTROL (AHC) ground sensors, the sensors must be placed in storage position to prevent equipment damage when folding points.

NOTE: If head is not equipped with AHC ground sensors, skip to next step.

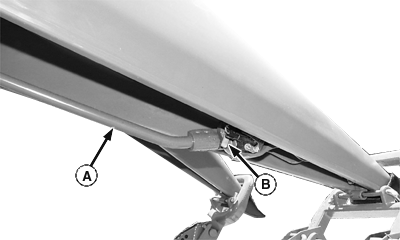

(Storing ACTIVE HEADER CONTROL Ground Sensors) Rotate sensor arm (A) up into storage positio and retain with storage lock pin (B).

A-Sensor Arm
B-Storage Lock Pin

OUO6091,0001602 -19-11MAR03-4/7

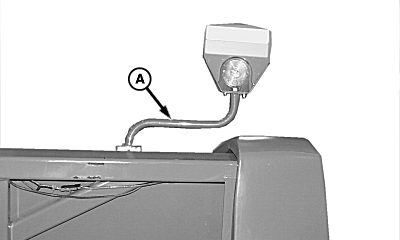

(Outer Gatherer Sheets) Rotate header warning lights (A) rearward.

A-Warning Light

OUO6091,0001602 -19-11MAR03-5/7

(Outer Gatherer Sheets) Raise point and remove quick-locking pin (A).

(Outer Gatherer Sheets) Remove spring locking pin and drilled pin (B).

A-Quick Locking Pin
B-Drilled Pin

OUO6091,0001602 -19-11MAR03-6/7

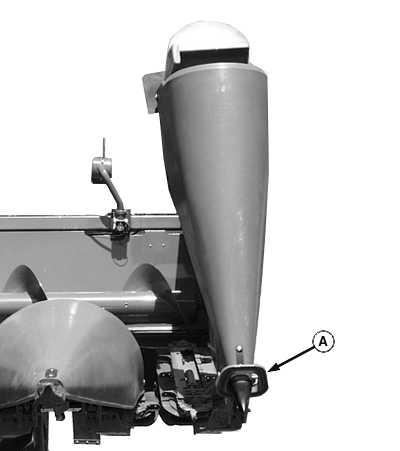

(Outer Gatherer Sheets) Pivot the point and gathering shield upwards and insert point through support (A). Insert drilled pin through pin support and transport loop. Secure drilled pin with spring locking pin.

A-Support
