Setting Reel Service Lock

CAUTION: Lower both sevice locks (A) when working under or on the reel.

Sound horn, start combine engine and raise reel all the way. Stop combine engine, set parking brake and remove key.

Unhook sevice lock (A) from storage clip, lower lock completely and verify lock snaps are locked on cylinder rod.

Repeat steps for other side other side of platform.

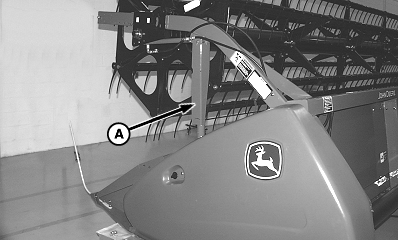

A-Service Lock
